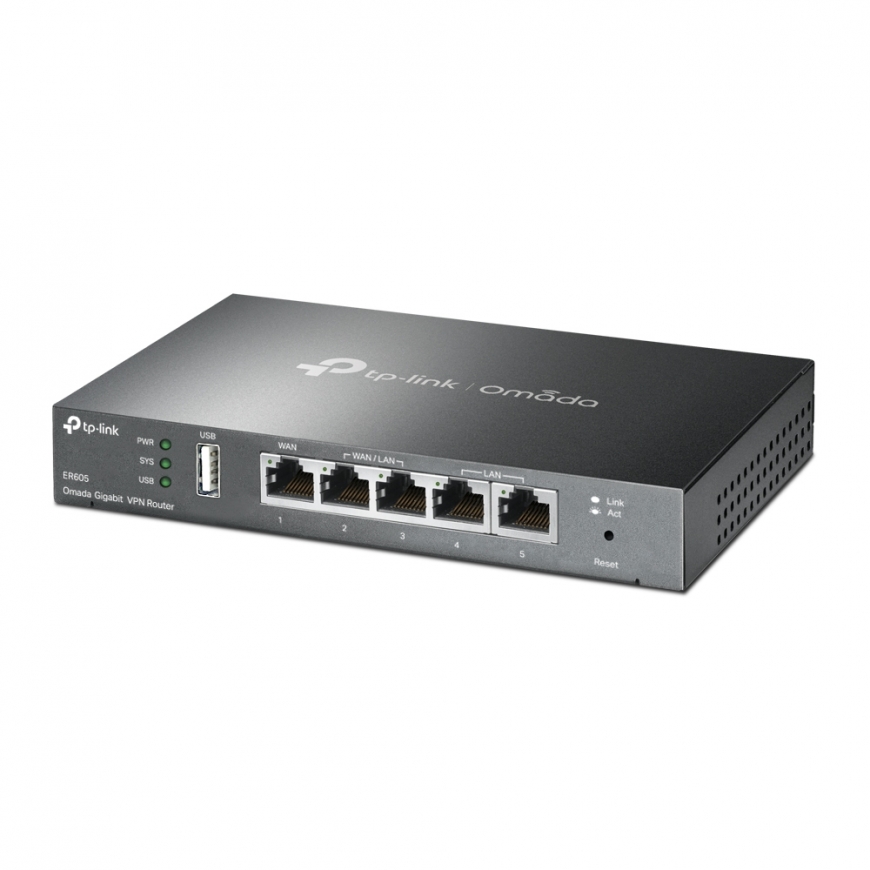

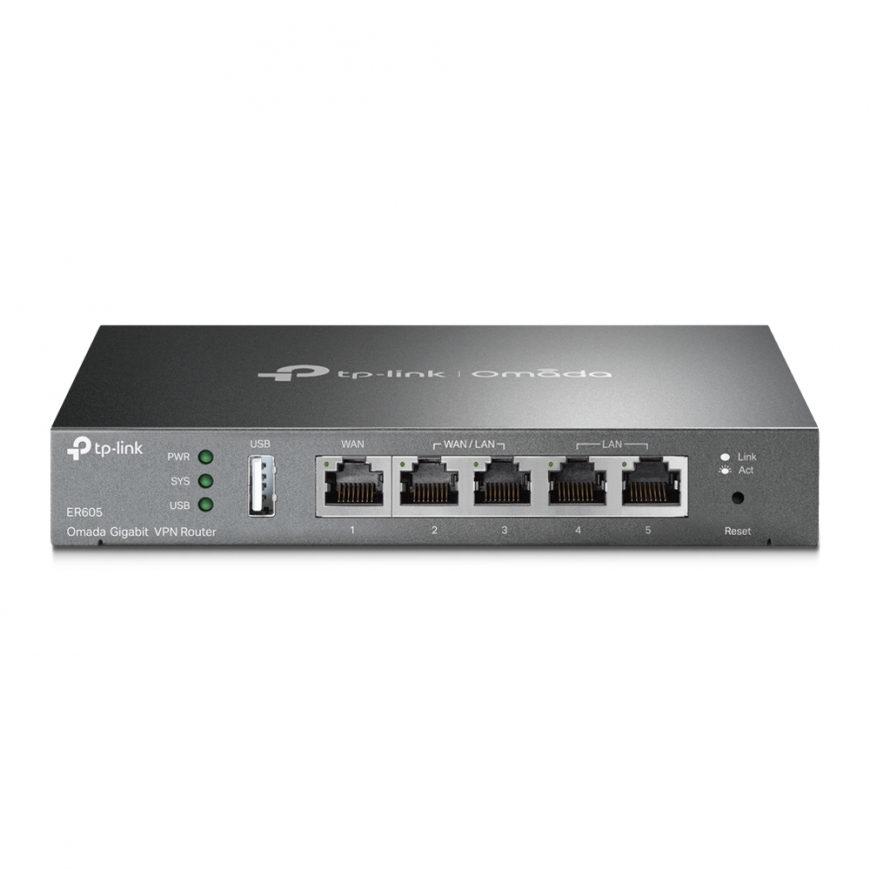

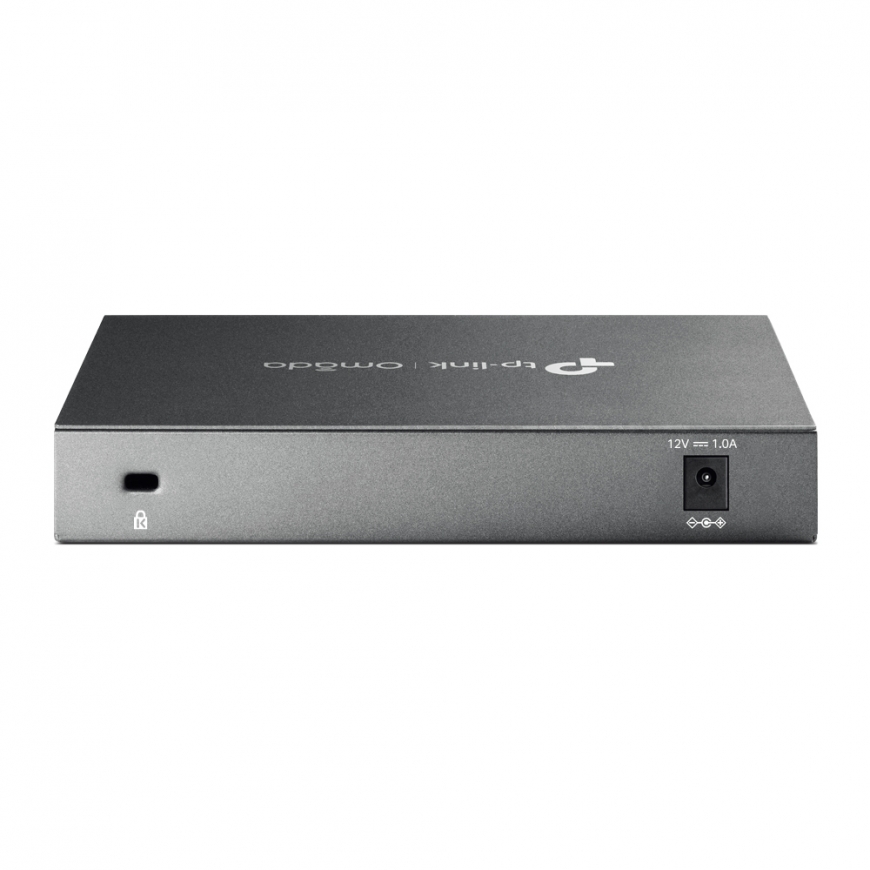

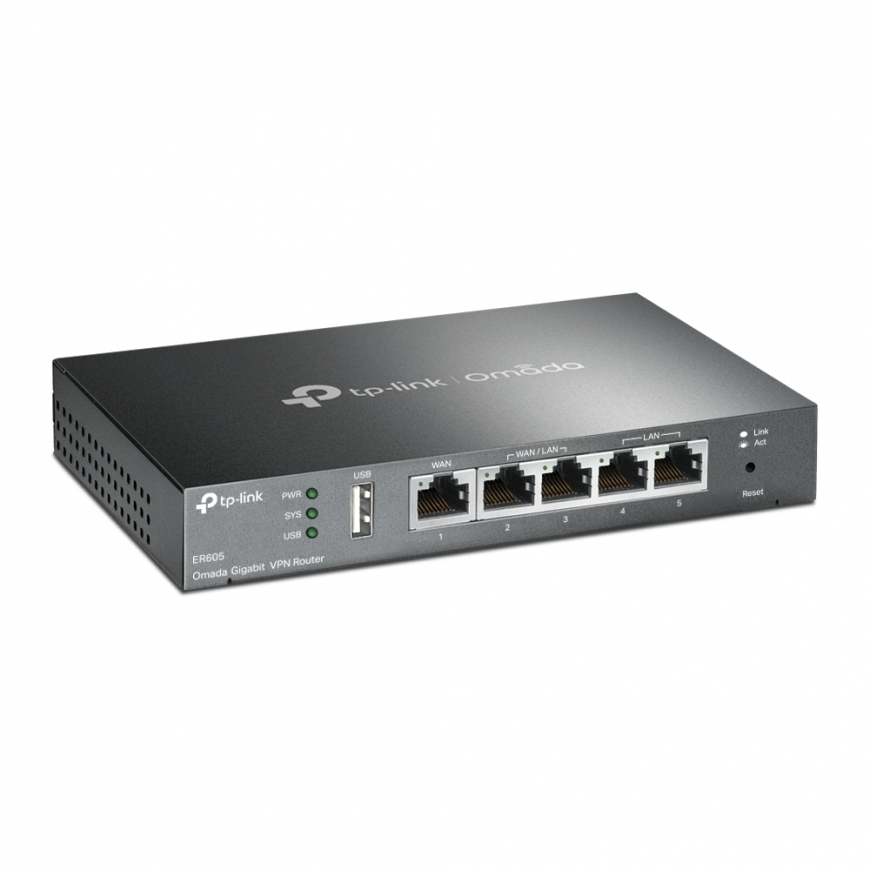

TP-Link Omada Gigabit VPN Router
86,38 €
Monthly payment from 3.12 €
1550406 ER605
6935364089597, 0840460604635, 1210002611206, 1210002611213
Shipping 5-6 b.d.
Pay 5x17.28€You are interested in this product?
Professional, Secure, and Reliable Gigabit VPN Router

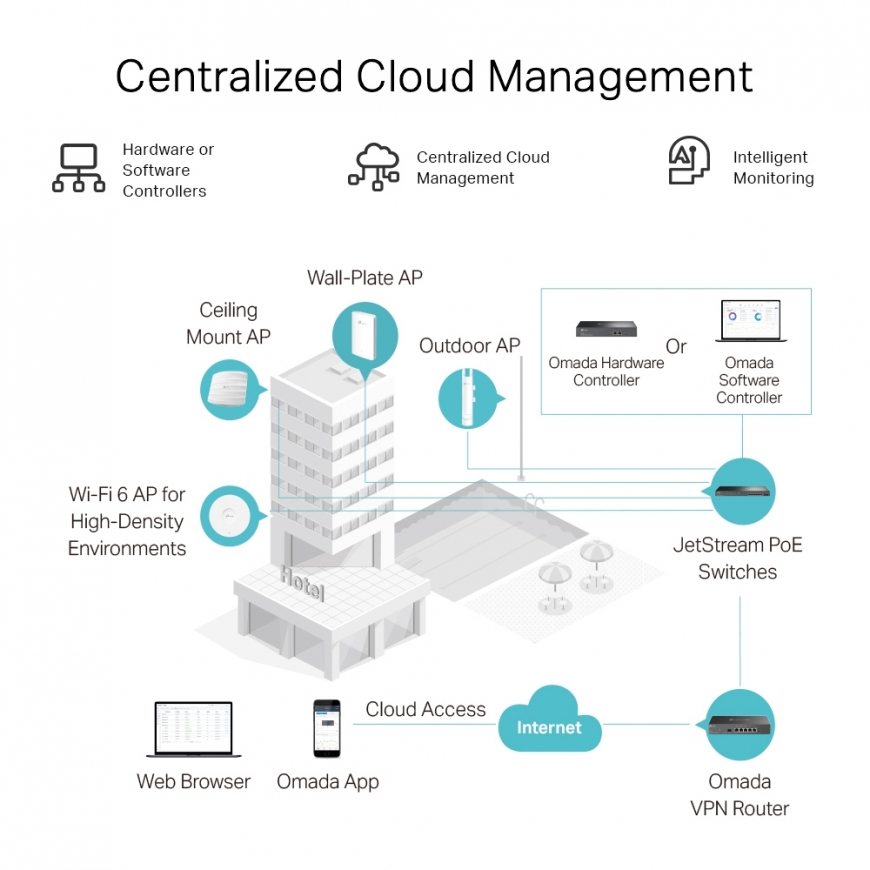

Omada SDN—The Smarter Cloud Solution for Business Networking
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER605 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.
Up to Three WAN Gigabit Ports & One USB WAN for Mobile Broadband
Two freely interchangeable ports allow the router to support up to three WAN ports for various Internet access requirements. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.
Mobile broadband via 4G/3G modem by connecting to the USB port is also supported for WAN backup.
High-Security and High-Performance VPN
ER605 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment. It also secures and encrypts private site-to-site data communications traveling over the internet. This version improves VPN performance by 4–5 times thanks to the open line of communication with Omada's user base.
Abundant Security Features
Powerful Firewall
Advanced firewall policies protect your network and data.
Convenient VLAN Support
Create virtual network segments for enhanced security and simplified network management.
DoS Defense
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.
IP/MAC/URL Filtering
Forcefully prevent viruses and attacks from intruders.
IP-MAC Binding
Reserves static IP assignment for clients to defend against ARP attacks and spoofing.
One-Click ALG Activation
One-Click ALG Activation for applications such as FTP, H323, SIP, IPSec and PPTP.
Internet Access Management Strategy
Administrators can moderate users' online behavior and easily specify employees' internet access rights and strategies via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of a mobile device.
WAN connection | |
| DSL WAN | No |
| Ethernet WAN | Yes |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x |
| VPN tunnels quantity | 20 |
| Ethernet LAN data rates | 10, 100, 1000 |
| VPN support | • 20 IPsec VPN Tunnels, • LAN-to-LAN, Client-to-LAN, • Main, Aggressive Negotiation Mode, • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm, • IKEv1/v2, • MD5, SHA1 Authentication Algorithm, • NAT Traversal (NAT-T), • Dead Peer Detection (DPD), • Perfect Forward Secrecy (PFS), • PPTP VPN Server, • 10 PPTP VPN Clients, • 16 Tunnels, • PPTP with MPPE Encryption, • L2TP VPN Server, • 10 L2TP VPN Clients, • L2TP over IPSec, • OpenVPN Server, • 10 OpenVPN Clients, • 16 OpenVPN Tunnels |
| Cabling technology | 10/100/1000Base-T(X) |
| Policy-based routing | Yes |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 5 |
Management features | |
| Web-based management | Yes |
| Reset button | Yes |
Security | |
| DMZ support | Yes |
| Security algorithms | 256-bit AES, 3DES, DES, 128-bit AES, 192-bit AES, MD5, SHA-1 |
| Firewall | Yes |
| Authentication method | SHA-1, MD5 |
| Network address translation (NAT) | Yes |
| System event log | Yes |
| URL filtering | Yes |
| DoS attack prevention | Yes |
| NAT functionality | • Port Triggering, • One-to-One NAT, • Multi-Net NAT, • Virtual Server, • NAT-DMZ, • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
| Supported network protocols | TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP |
| Universal Plug and Play (UPnP) | Yes |
| Routing protocols | RIP-1, RIP-2 |
| Management protocols | Telnet |
Design | |
| LED indicators | USB, LAN, System, WAN, Activity |
| Product colour | Black |
| Rack capacity | 1U |
Features | |
| Internal memory | 256 MB |
| Flash memory | 128 MB |
| Internal memory type | DRAM |
Power | |
| Power source type | AC |
| AC input voltage | 120 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 7.94 W |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions | |
| Width | 158 mm |
| Depth | 101 mm |
| Height | 25 mm |
Packaging data | |
| Package width | 190 mm |
| Package depth | 254 mm |
| Package height | 60 mm |
| Package weight | 650 g |
System requirements | |
| Windows operating systems supported | Windows 7, Windows 8, Windows Vista, Windows XP, Windows 10, Windows 8.1, Windows 2000, Windows 98SE, Windows NT |
| Mac operating systems supported | MacOS |
| Linux operating systems supported | Yes |
Other features | |
| USB ports quantity | 1 |
| Supported protocols | IPsec/PPTP/L2TP |
| Rack mounting | Yes |
Certificates | |
| Certification | CE, FCC, RoHS |
Technical details | |
| Compliance certificates | RoHS |
Packaging content | |
| Cables included | AC |
| Manual | Yes |
| Quick start guide | Yes |
| Quick installation guide | Yes |
