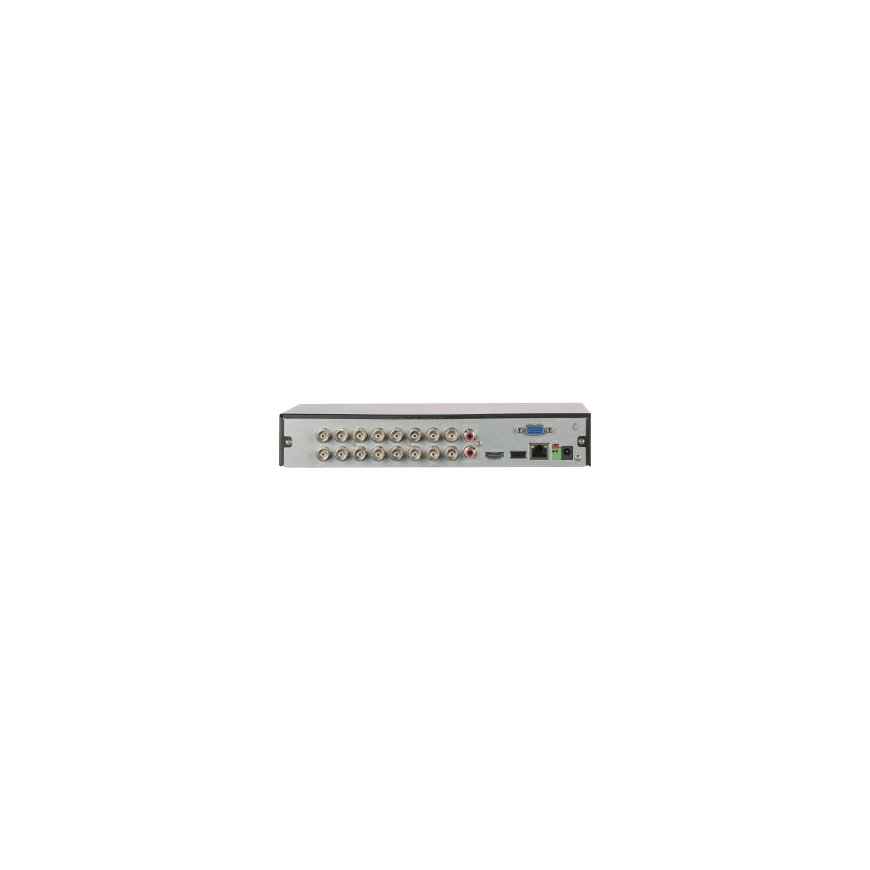

Dahua Technology XVR5116HS-I3 digital video recorder (DVR) Black
209,00 €
Monthly payment from 6.28 €
1121511 XVR5116HS-I3
6923172534095
2026-04-21
Pay 5x41.80€You are interested in this product?
Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-I3 Series featuring max.full-channel SMD Plus to benefit customers from AI upgrade (The number of channels differs depending on the model. Please refer to the specifications below for information on the number of channels.). This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.
Performance | |
| Video compression formats | H.264, H.265, H.264+, H.265+ |
| Audio formats supported | PCM, G.711 A-law, G.711 μ-law |
| Channels quantity | 16 channels |
| Product colour | Black |
| Analog signal format system | PAL, NTSC |
| Operating system installed | Embedded LINUX |
| Certification | FCC: Part 15 Subpart B, CE: CE-LVD: EN 60950-1/IEC 60950-1, CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN, 50130, EN 55024 |
| Video loss detection | Yes |
| Maximum video resolution | 3840 x 2160 pixels |
| Rack capacity | 1U |
| Video streaming | Yes |
| Dual stream support | Yes |
| Bit rate | 32 Kbit/s |
| Video motion detection | Yes |
| Backup function | Yes |
| PTZ control | Yes |
| Video capturing speed (PAL) | 25 fps |
| Video capturing speed (NTSC) | 30 fps |
Hard drive | |
| HDD interface | SATA |
| Maximum HDD capacity | 16 TB |
Power | |
| Power supply type | DC |
| DC voltage | 12 V |
Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Ports & interfaces | |
| BNC input ports | 16 |
| USB 2.0 ports quantity | 1 |
| Audio input | 1 RCA |
| Audio output | 1 RCA |
| RS-485 ports | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Video in | HDCVI/AHD/TVI/CVBS/IP |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Network | |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Supported network protocols | HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P |
| Ethernet LAN | Yes |
Weight & dimensions | |
| Weight | 1.17 kg |
| Width | 260 mm |
| Depth | 237.4 mm |
| Height | 47.6 mm |
Packaging data | |
| Package width | 89 mm |
| Package depth | 333 mm |
| Package height | 315 mm |
