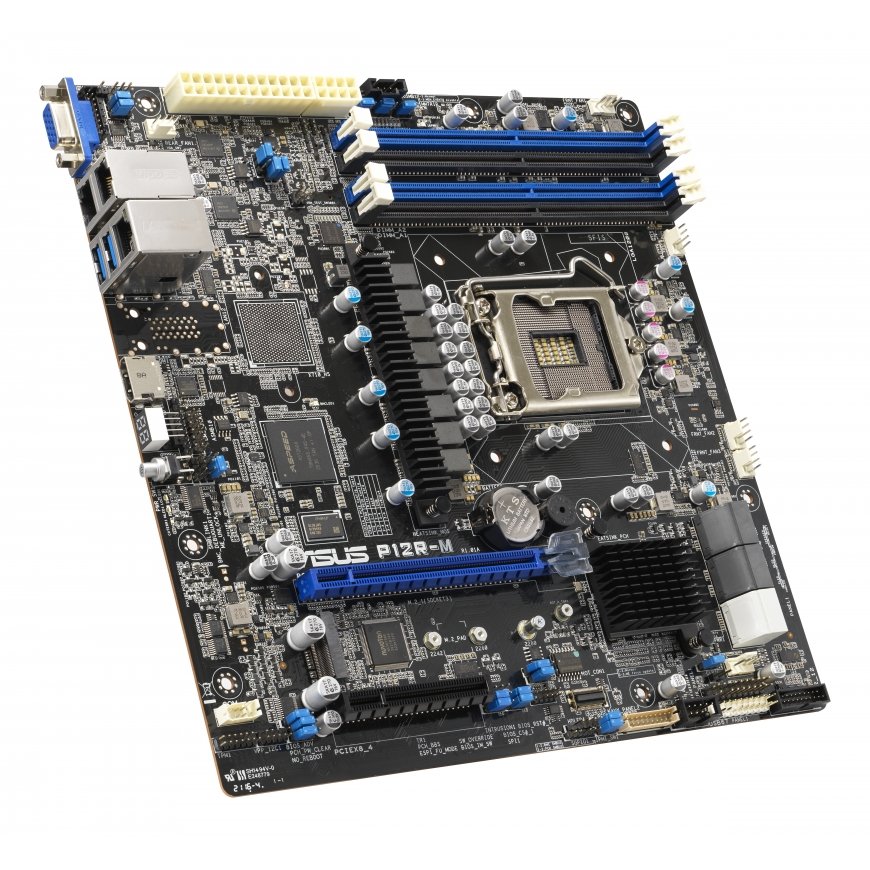

ASUS P12R-M Intel C252 LGA 1200 (Socket H5) micro ATX
389,38 €
Monthly payment from 10.93 €
1105878 90SB09X0-M1UAY0
4711081384571, 0195553384575, 4711081684749
This product is no longer in stock
Pay 5x77.88€You are interested in this product?
PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.
Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.
High-resolution HDMI monitoring
ASUS P12R server motherboards feature an HDMI 1.4 port directed from the CPU to offer higher-resolution monitoring and easier maintenance for IT administrators in business environments. A VGA port directed from BMC is also available for dual-display monitoring.
Dual Ethernet bandwidth
With dual onboard LAN powered by an Intel I210AT Ethernet controller, P12R server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.
ASUS ASMB10-iKVM
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.
ASUS Control Center
ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
Enhanced security
ASUS P12R server motherboards integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.
In addition, all P12R server motherboards servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.
* Both PFR and TPM are options, available on request.
Processor | |
| Compatible processor series | Intel® Pentium®, Intel Xeon E |
| Processor socket | LGA 1200 (Socket H5) |
| Processor manufacturer | Intel |
Memory | |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | 2666, 2933, 3200 |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Supported memory module capacities | 4GB, 8GB, 16GB, 32GB |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
Graphics | |
| Graphics card | AST2600 |
| Graphics card family | ASPEED |
| On-board graphics card memory | 64 MB |
Internal I/O | |
| ATX Power connector (24-pin) | Yes |
| Number of SATA III connectors | 6 |
| EPS power connector (8-pin) | Yes |
| Serial port headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 2 |
Rear panel I/O ports | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
Network | |
| LAN controller | Intel® I210-AT |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Features | |
| Motherboard form factor | micro ATX |
| Motherboard chipset | Intel C252 |
| Motherboard chipset family | Intel |
| Component for | Server |
Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
Operational conditions | |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
Packaging data | |
| Package weight | 1.3 kg |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
