Inverter GROWATT SPF5000ES, 5kW, 1-phase, 48V, 100A MPPT, 450V
939,00 €
Мес. плата от 25.08 €
2290857 NV820726
9990000820726
Доставка 2-4 р.д.
Оплати 5x187.80€Вас заинтересовал этот товар?
Features:

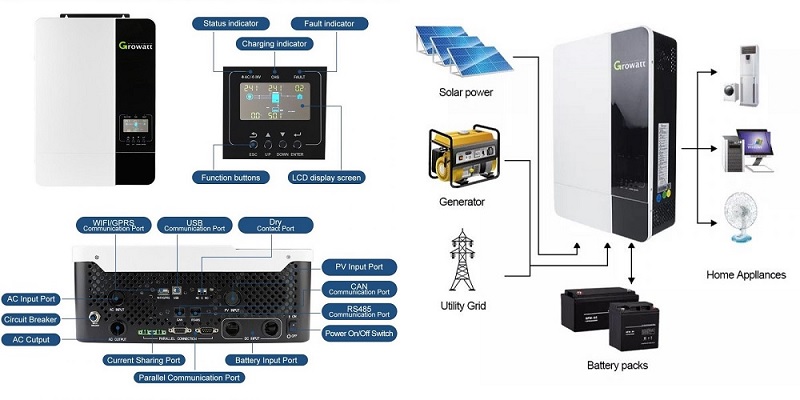

Combines the functions of an inverter, MPPT 80A solar charger and battery charger to provide uninterrupted power support while remaining portable.
This inverter does not require a battery to operate.
Operating parameters and priorities can be set on the LCD screen as needed.
Nominal power 5kW. The power of solar panels is up to 6kW.
The maximum PV open circuit voltage reaches 450V DC, MPPT voltage 120~430V DC, which allows full use of solar energy.
Supports parallel connection to increase power up to 30 kW.
Integrated MPPT 100A PV charge controller.
Combines solar, AC or battery power to ensure continuous power.
Allows for flexible planning of inverter charging and discharging time.
Technical data:
Battery voltage: 48V DC.
Nominal power: 5000W.
Fuse tripping: at 10000VA.
Waveform: True sinusoid.
Battery type: lithium/lead acid.
Switching time: 10ms/20ms.
Frequency: 50/60Hz.
PV open circuit voltage max.: 450V DC.
MPPT voltage range: 120~430V DC.
Max. solar charge current: 100A.
Power of solar panels: 6000W.
Safety class: IP20.
Screen: LCD.
Operating temperature: 0°C ~ +55°C.
Dimensions: 330x485x135mm.
Weight: 12 kg.
Warranty: The warranty of the voltage converter (inverter) is valid from the day when we (the seller) are provided with the serial number of the inverter, the purchase invoice, a certified electrician's or es certificate at the time of delivery of the solar power plant about the installed:
1) Lightning arrester and overvoltage limiter (on the input side)
2) Lightning protection (between solar panels and inverter)
3) DC voltage disconnector between panels and inverter
4) Separate grounding of solar panels, from common house grounding
The 2-year (24-month) manufacturer's warranty is valid from the date of purchase of the inverter upon submission of the above documents.
Note: Lightning strike is an insurable event, not a warranty event.
Specifications
| Default battery voltage | 48V DC (Lithium / Lead-acid) |
| Inverter output | |
| Rated power | 5000VA / 5000W |
| Surge power | 10000VA |
| Waveform | pure sine wave |
| AC voltage regulation (Battery mode) | 230V AC +/- 5% @ 50/60Hz |
| Transfer time | 10ms (typical) / 20ms (max) |
| AC charger | |
| Charge current | 80A |
| Voltage | 230V AC |
| Selectable voltage range | 170~280V AC (for PC) / 90~280V AC (for home appliances) |
| Frequency range | 50Hz / 60Hz (Auto sensing) |
| Efficiency | |
| Inverter efficiency (peak) | 93% |
| Solar charger | |
| Maximum PV array open circuit voltage | 450V DC |
| MPPT range @ operating voltage | 120~430V DC |
| Number of independent MPP trackers | 1 |
| Strings via MPP tracker | 1 |
| Maximum solar charge current | 100A |
| Maximum PV array power | 6000W |
| General specifications | |
| Dimensions(W*H*D) | 330*485*135 mm |
| Protection degree | IP20 |
| Even weight | 11.5 kg |
| Altitude | < 2000 |
| Operating temperature | 0°C to 55°C |
| Humidity range (non-condensing) | 5% - 95% |
| Storage temperature | -15°C to 60°C |
