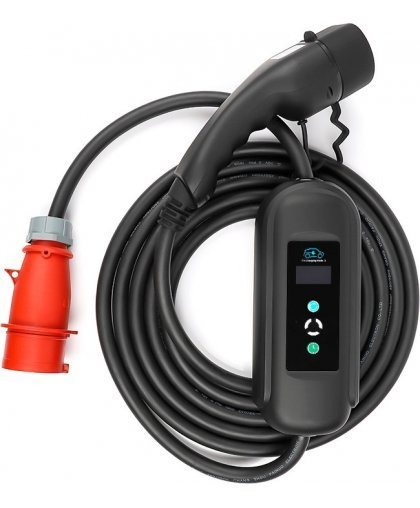

Data eLOAD electric car charger, CEE, 11 kW, Type2

Data eLOAD electric car charger, CEE, 11 kW, Type2. The small, light and mobile eLoad charger is suitable for charging both at home and on the go. The charger has a Type2 plug and a maximum charging power of 11 kW.

The charger is connected directly to the CEE power socket, so no fixed installation is required. The power of the charger is adjustable between 5.5-11 kW, so the power demand during charging can be easily matched with other electrical appliances in the home. The charger also supports timed charging (delay function 1-10 h). The device is also convenient to take with you on a trip and the durable shell guarantees a long service life.

One device for a variety of different charging needs.

Features:

• No electrical installation required - connects directly to the CEE 3x16 A / 400 V power socket
• The small, light and mobile charger enables versatile use
• The charging power is adjustable between 5.5 and 11 kW
• Delayed charging, delay function 1-10 h
• Informative display
• Safe - certified and CE marked

Technical information:

• Model: Data eLOAD charger, TIE-EV16-P3
• Charging method: Mode 2
• Charger category: AC charging
• Vehicle connector: Type 2
• Mains connector: CEE 16 A / 400 V
• The total length of the CEE-Type2 cable is approx. 5 m
• Number of stages: 3-stage, also supports 1-stage and 2-stage charging
• Voltage: 230/400 V
• Charging current: 8, 10, 13, 16 A
• Charging power: 5.5-11 kW
• Type A AC RCD + DC RCD
• Case color: black
• IP class: IP65 charging box and IP54 Type2 charging head
• Operating temperature: -30 ~ + 50 ° C
• Dimensions: 39 x 39 x 11 cm (p, 1, h)
• Weight: 2.9 kg

Sales package contents:

• Data eLOAD charger

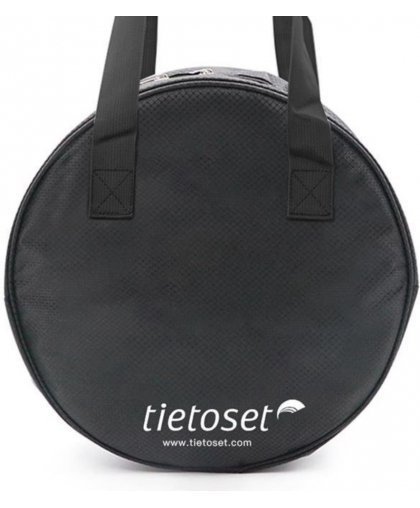

• Carrying case
• Instruction manual
