TERMINAL MEASURING DEVICE (OPEN TERMINALS) UT-256B UNI-T
93,37 €
Ikm. maksa no 3.30 €
3620990 07720181
6935750525623
Piegāde 2026-04-27 Latvijas teritorijā +1 diena
Maksājumi 5x18.67€Šī prece Jūs ieinteresēja

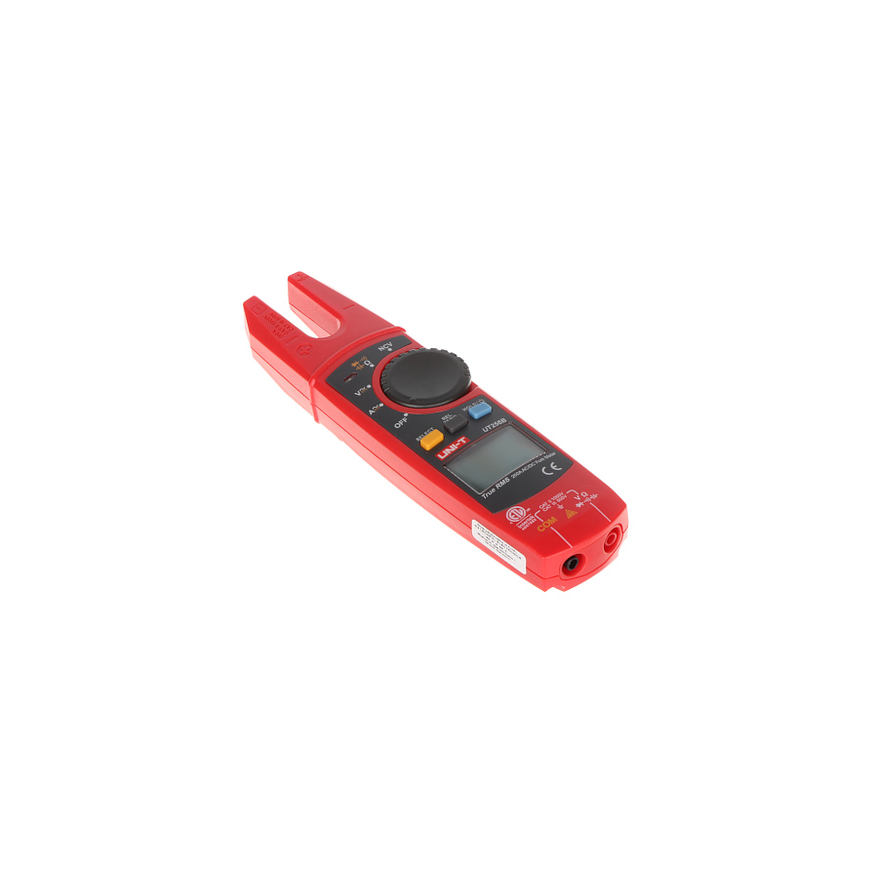

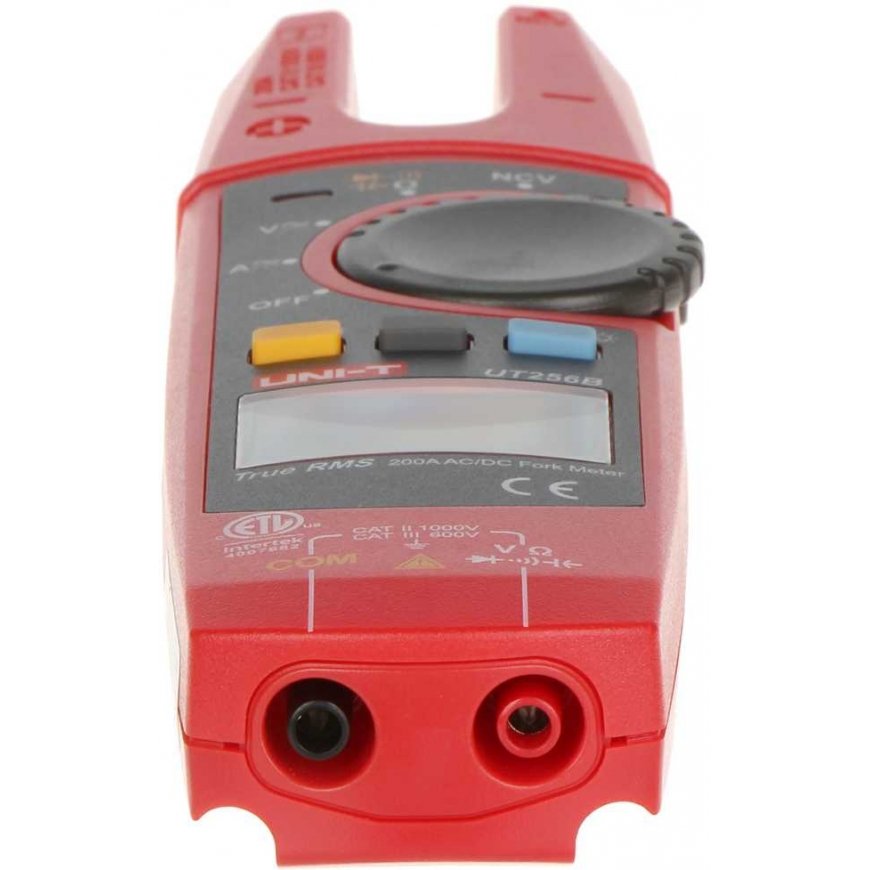

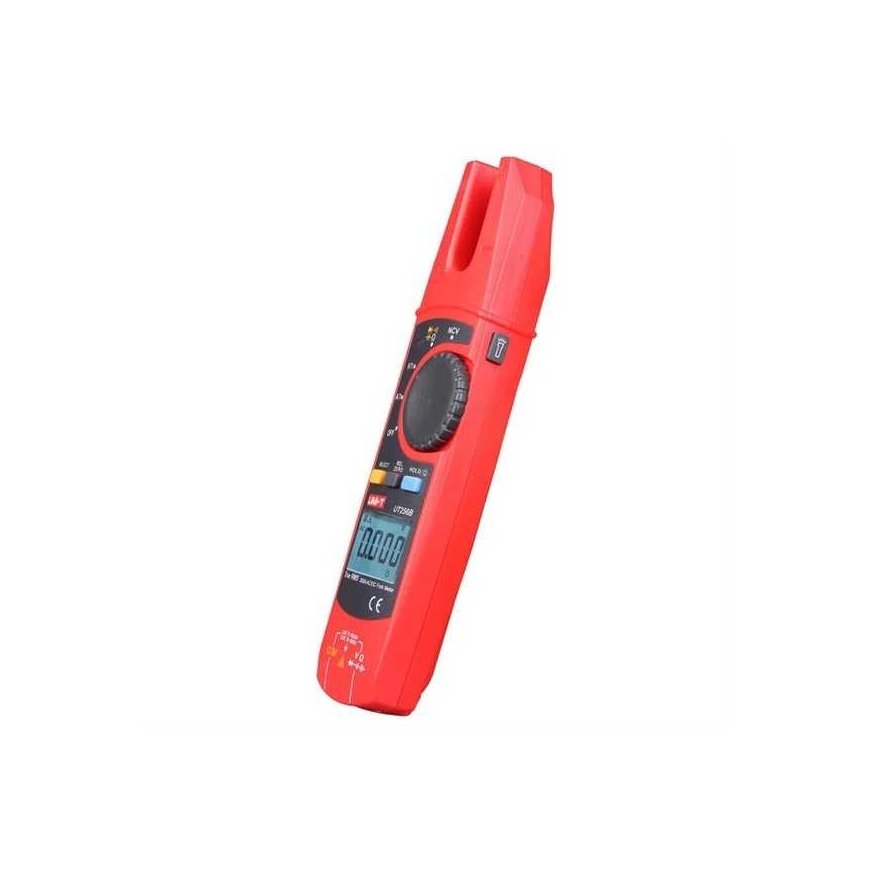

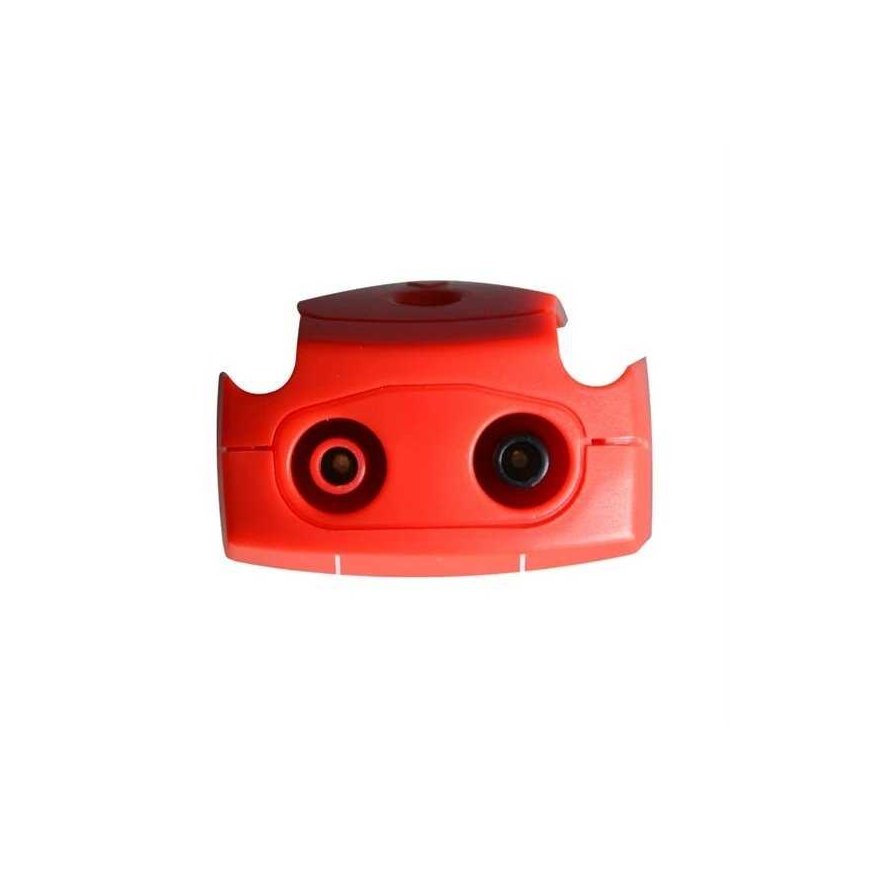

The UT-256B is a universal digital meter with clamps that can measure high voltages.
The device allows measurement of voltage, electric current, resistance and capacitance.
In addition, the meter has an electric field (NCV) detection function.
The meter has a True RMS converter, thanks to which accurate measurement of the efficiency value of electric current and voltage, sinusoidal as well as shapeless flows is possible.
| DC voltage measurement : | 6V ± (0.8% + 3) @ 0.001V, 60V ± (0.8% + 3) @ 0.01V, 600V ± (0.8% + 3) @ 0.1V, 1000V ± (1% + 5) @ 1V |
| AC voltage measurement : | 6V ± (1.2% + 5) @ 0.001V, 60V ± (1.2% + 3) @ 0.01V, 600V ± (1.2% + 3) @ 0.1V, 750V ± (1.5% + 5) @ 1V |
| DC current measurement : | 200A ± (2.5% + 5) @ 0.1A |
| AC current measurement : | 200A ± (2.5% + 5) @ 0.1A |
| Resistance measurement : | 600 Ω ± (1.2% + 2) @ 0.1 Ω , 6 kΩ ± (1% + 2) @ 0.001 kΩ , 60 kΩ ± (1% + 2) @ 0.01 kΩ , 600 kΩ ± (1% + 2) @ 0.1 kΩ , 6 MΩ ± (1.2% + 2) @ 0.001 MΩ , 60 MΩ ± (1.5% + 5) @ 0.01 MΩ |
| Capacity measurement : | 60 nF ± (4% + 20) @ 0.01 nF , 600 nF ± (4% + 20) @ 0.1 nF , 6 µF ± (4% + 20) @ 0.001 µF , 60 µF ± (4% + 20) @ 0.01 µF , 600 µF ± (4% + 20) @ 0.1 µF , 6mF ± (10%) @ 0.001mF 60 mF @ 0.01 mF |
| Inductance measurement : | - |
| Frequency measurement : | - |
| Temperature measurement : | - |
| Automatic change of measurement scale : | ✔ |
| Diode test : | ✔ |
| Audible circuit integrity alarm : | ✔ |
| RS-232 : | - |
| USB : | - |

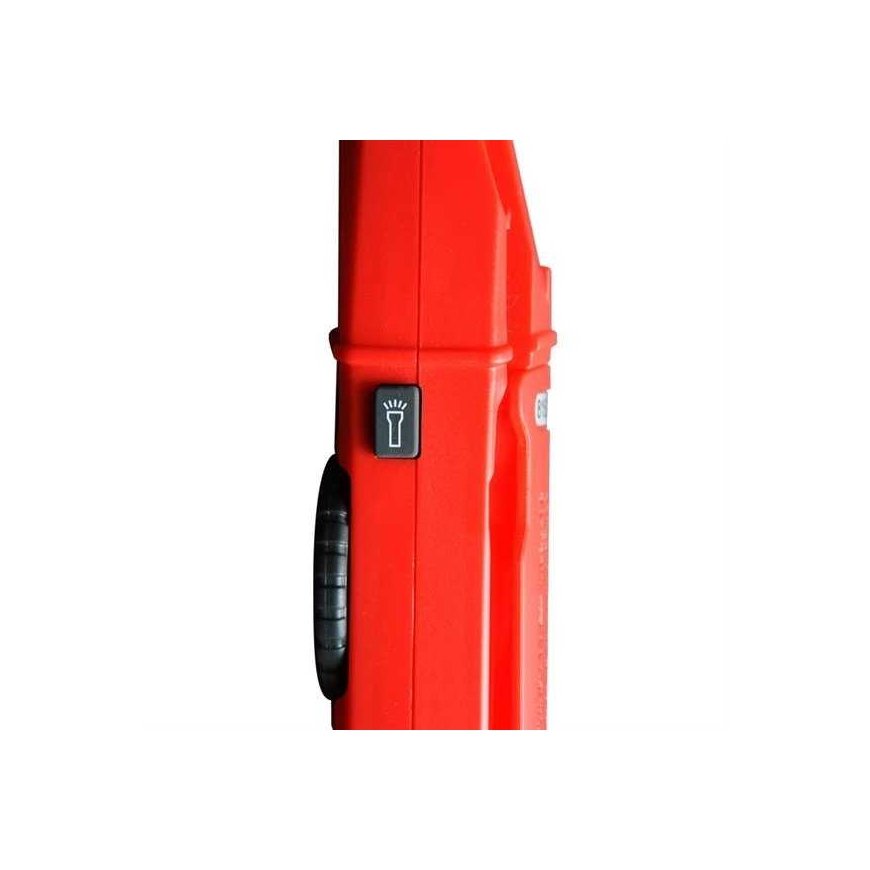

| Main features : | True RMS - accurate measurement of the real value of any form of electric current and voltage flow, NCV - electric field detection function, REL - relative measurement mode, Freezing of the highest or lowest indicator, Hold - stopping the meter indicator, Integrated flashlight, Large, legible LCD display with backlight, Low battery signal, Aesthetic and solid construction, Practical case included |
| Power supply : | 2 x 1.5V battery, AA/LR6/FR6 type - included |
| Weight : | 0.18 kg |
| Dimensions : | 210 x 53 x 35 mm |
| Manufacturer / Brand : | UNI-T |
| Warranty : | 2 years |
