Produkta tonis un faktiskā krāsa var atšķirties no attēlā redzamā, jo attēli ir ilustratīvi. Produkta apraksts ir vispārīgs un, iespējams, tajā nav iekļautas visas produkta īpašības.
Unit LABORATORY MEASURING INSTRUMENTS UT-803 UNI-T
349,00 €
Ikm. maksa no 9.89 €
3618516 UT-803
5901436775058
Piegāde 2-5 d.d.
Maksājumi 5x69.80€Šī prece Jūs ieinteresēja

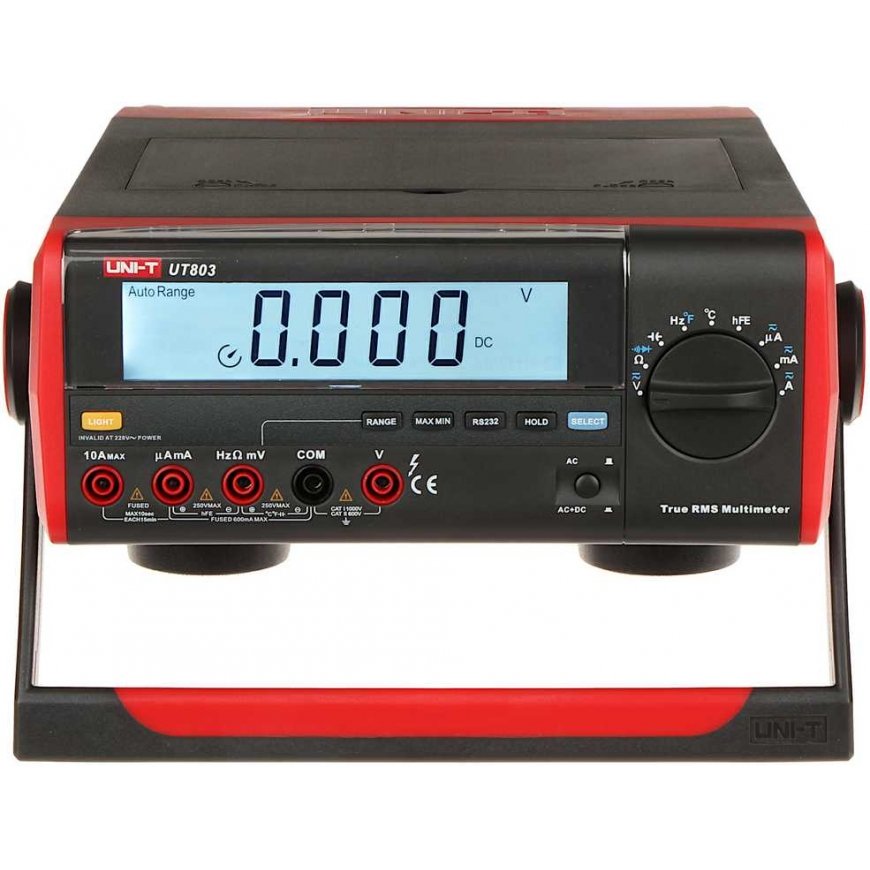

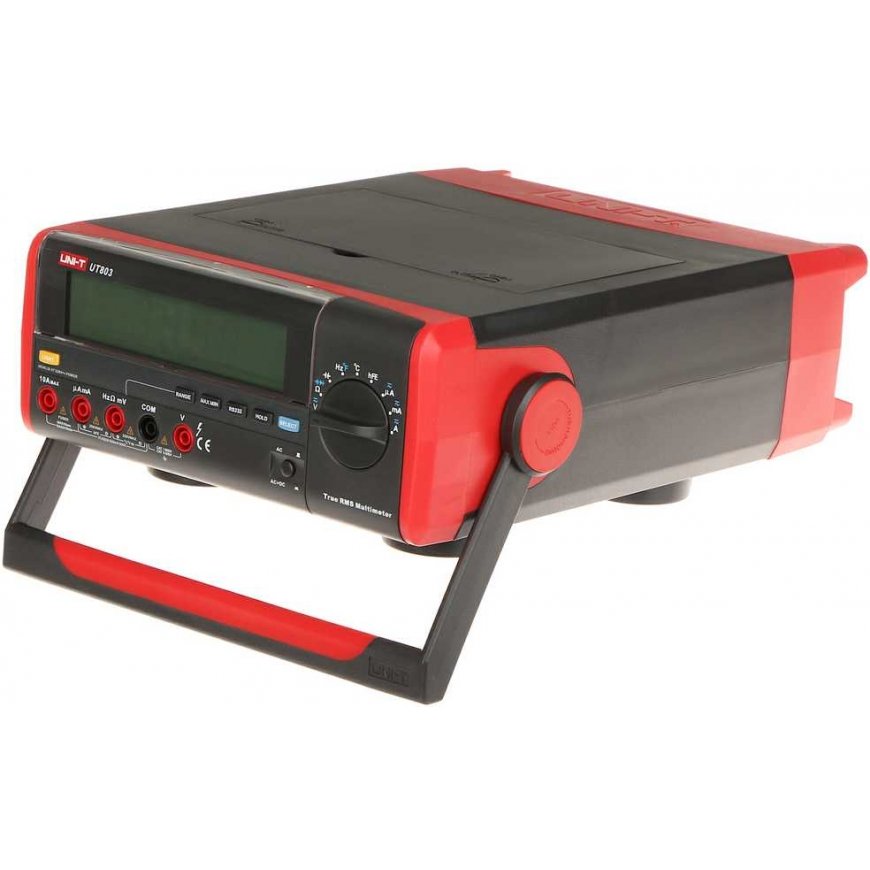

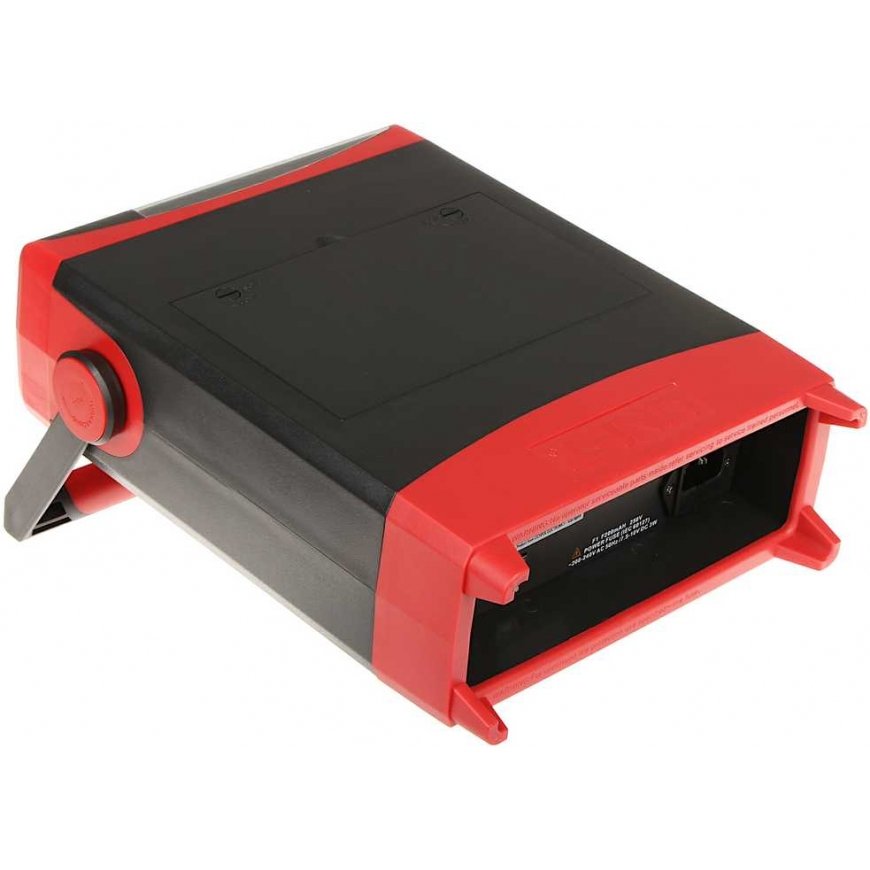

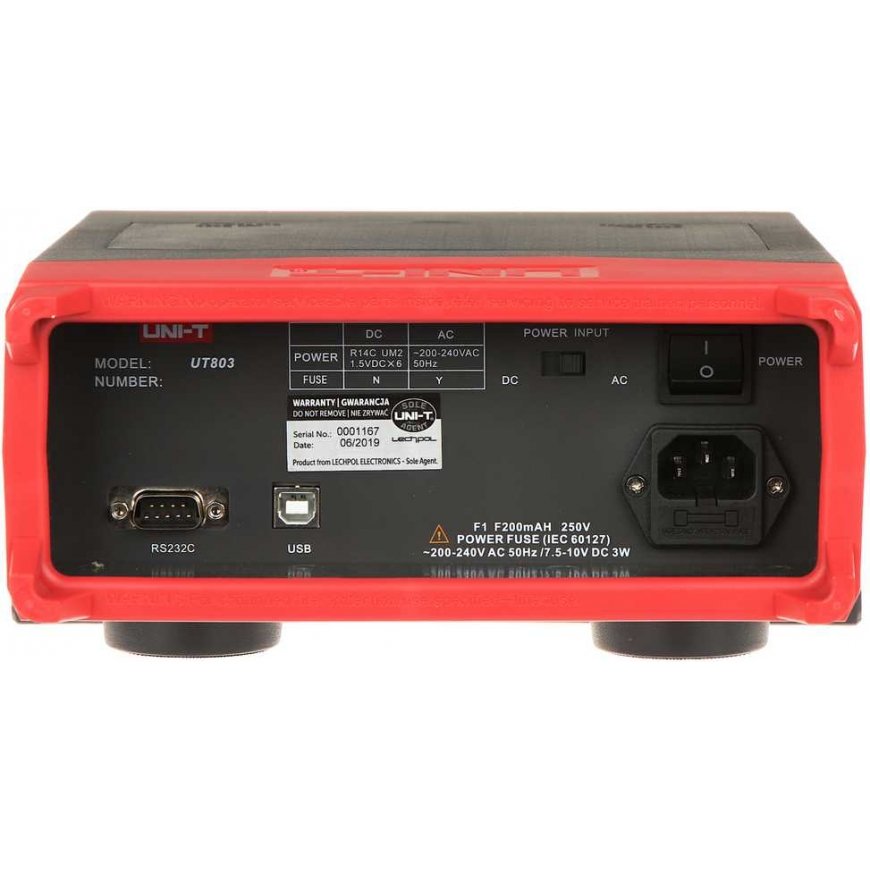

The UT-803 is a digital laboratory measuring instrument designed to measure voltage, current, resistance, inductance, capacitance, frequency, temperature, and diode function.
| DC voltage measurement : | 600 mV ± (0.6% + 2) @ 0.1 mV, 6 V ± (0.3% + 2) @ 0.001 V, 60 V ± (0.3% + 2) @ 0.01 V, 600 V ± (0.3% + 2) @ 0.1 V, 1000 V ± (0.5% + 3) @ 1 V |
| AC voltage measurement : | 600mV @ 0.1mV : ± (0.6% + 5) @ 40 Hz ... 50 kHz ± (1.0% + 5) @ 50 kHz ... 100 kHz 6V @ 0.001V : ± (0.6% + 5) @ 40 Hz ... 1 kHz ± (1.0% + 5) @ 1 kHz ... 10 kHz ± (3.0% + 5) @ 10 kHz ... 100 kHz 60V @ 0.01V : ± (0.6% + 5) @ 40 Hz ... 1 kHz ± (1.5% + 5) @ 1 kHz ... 10 kHz ± (3.0% + 5) @ 10 kHz ... 20 kHz ± (8.0% + 5) @ 20 kHz ... 100 kHz 600V @ 0.1V : ± (0.6% + 5) @ 40 Hz ... 1 kHz ± (3.5% + 5) @ 1 kHz ... 10 kHz 1000V @ 1V: ± (1.2% + 3) @ 40 Hz ... 1 kHz ± (3.0% + 3) @ 1 kHz ... 3 kHz |
| DC current measurement : | 600 µA ± (0.5% + 3) @ 0.1 µA, 6000 µA ± (0.5% + 3) @ 1 µA, 60 mA ± (0.5% + 3) @ 0.01 mA, 600 mA ± (0.8% + 3) @ 0.1 mA, 10 A ± (1.2% + 3) @ 0.01 A |
| AC current measurement : | 600 µA @ 0.1 µA : ± (1.0% + 5) @ 40 Hz ... 10 kHz ± (2.0% + 5) @ 10 kHz ... 15 kHz 6000 µA @ 1 µA: ± (1.0% + 5) @ 40 Hz ... 10 kHz ± (2.0% + 5) @ 10 kHz ... 15 kHz 60mA @ 0.01mA : ± (1.0% + 5) @ 40 Hz ... 10 kHz ± (2.0% + 5) @ 10 kHz ... 15 kHz 600mA @ 0.1mA : ± (1.0% + 5) @ 40 Hz ... 10 kHz ± (3.0% + 5) @ 1 kHz ... 10 kHz 10A @ 0.01A : ± (2.0% + 6) @ 40 Hz ... 5 kHz |
| Resistance measurement : | 600 Ω ± (0.8% + 3) + test lead resistance @ 0.1 Ω, 6 kΩ ± (0.5% + 2) @ 0.001 kΩ, 60 kΩ ± (0.5% + 2) @ 0.01 kΩ, 600 kΩ ± (0.5% + 2) @ 0.1 kΩ, 6 MΩ ± (0.8% + 2) @ 0.001 MΩ, 60 MΩ ± (1.2% + 3) @ 0.01 MΩ |
| Capacity measurement : | 6 nF ± (2.5% + 5) @ 0.001 nF, 60 nF ± (2.5% + 5) @ 0.01 nF, 600 nF ± (2.0% + 5) @ 0.1 nF, 6 µF ± (2.0% + 5) @ 0.001 µF, 60 µF ± (2.0% + 5) @ 0.01 µF, 600 µF ± (3.0% + 4) @ 0.1 µF, 6 mF ± (5.0% + 4) @ 0.001 mF |
| Inductance measurement : | - |
| Frequency measurement : | 6 kHz ± (0.1% + 3) @ 0.001 kHz, 60 kHz ± (0.1% + 3) @ 0.01 kHz, 600 kHz ± (0.1% + 3) @ 0.1 kHz, 6 MHz ± (0.1% + 3) @ 0.001 MHz, 60 MHz ± (0.1% + 3) @ 0.01 MHz, |
| Temperature measurement : | °C : -40 °C ... 0 °C ± (8.0% + 5) @ 1 °C , 0 °C ... 400 °C ± (1.0% + 3) @ 1 °C , 400 °C ... 1000 °C ± (1.5% + 3) @ 1 °C , °F : -40 °F ... 32 °F ± (8.0% + 5) @ 1 °F , 32 °F ... 752 °F ± (1.5% + 5) @ 1 °F , 752 °F ... 1832 °F ± (2.5% + 5) @ 1 °C |
| Automatic change of measurement scale : | - |
| hFE : | ✔ |
| Diode test : | ✔ |
| Audible circuit integrity alarm : | ✔ |
| Checking logical TTL states : | - |
| RS-232 : | - |
| USB : | - |
| Main features : | Large, easy-to-read LCD display with backlight Ability to measure alternating voltage with respect to the constant component (AC+DC measurement function) Hold - stopping the meter reading Aesthetic and solid construction |
| Power supply : | 6 x 1.5V battery, R14/LR14 type (not included), 220 V AC |
| Weight : | 1.88 kg |
| Dimensions : | 306 x 243 x 107 mm |
| Manufacturer / Brand : | UNI-T |
| Warranty : | 2 years |
