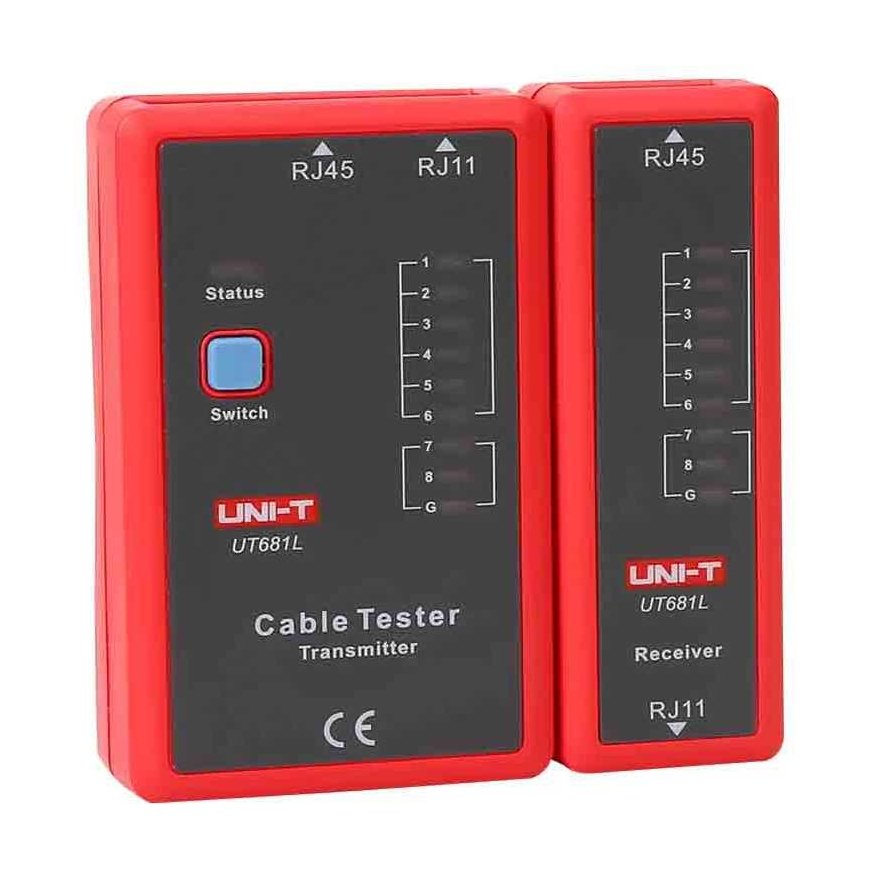

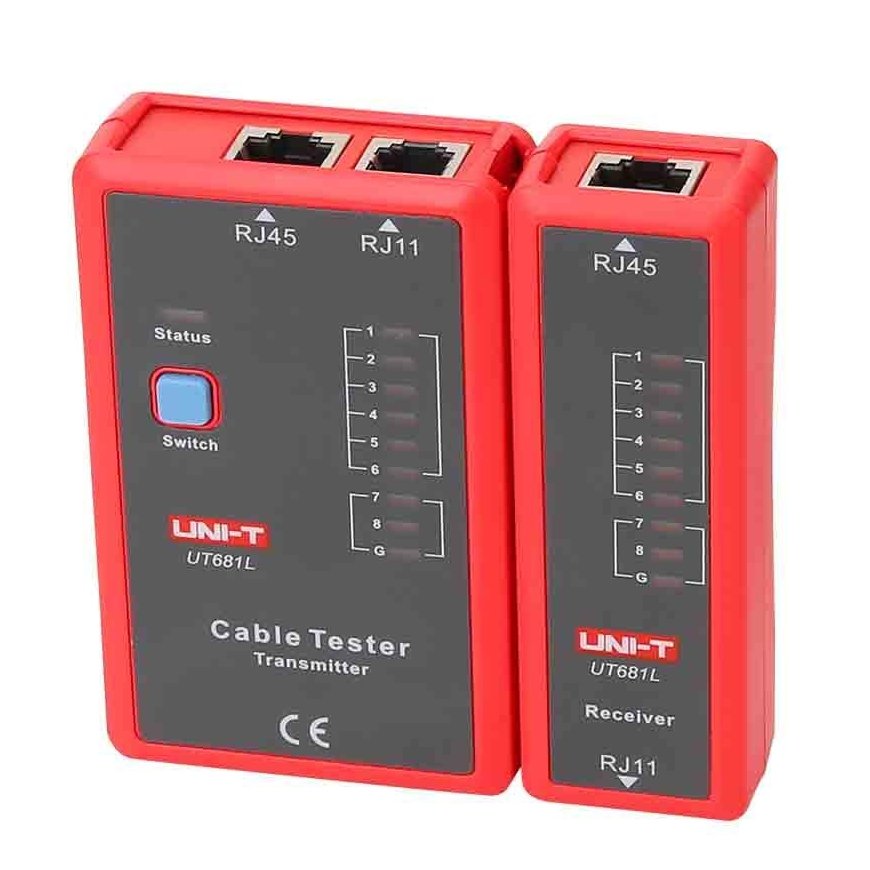

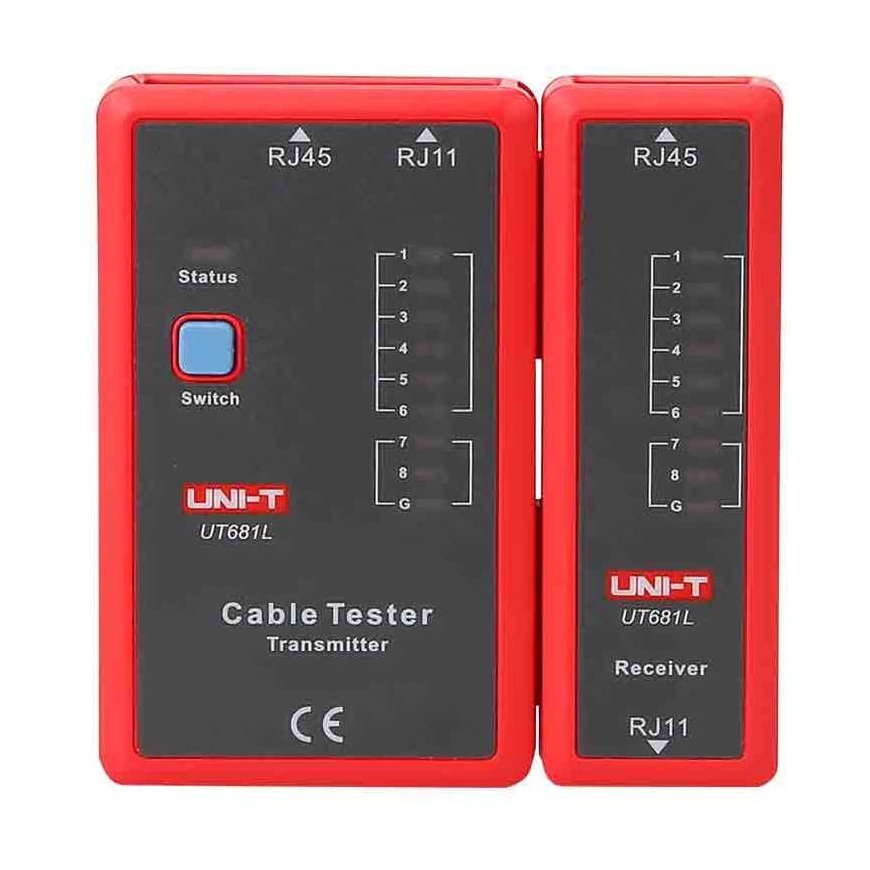

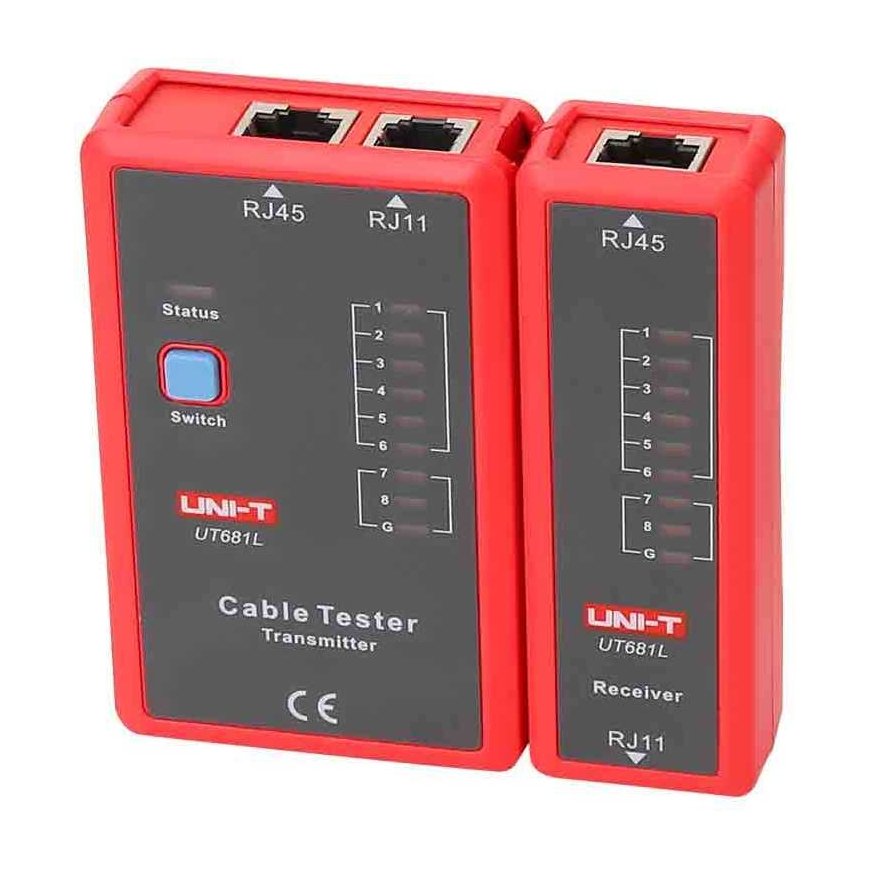

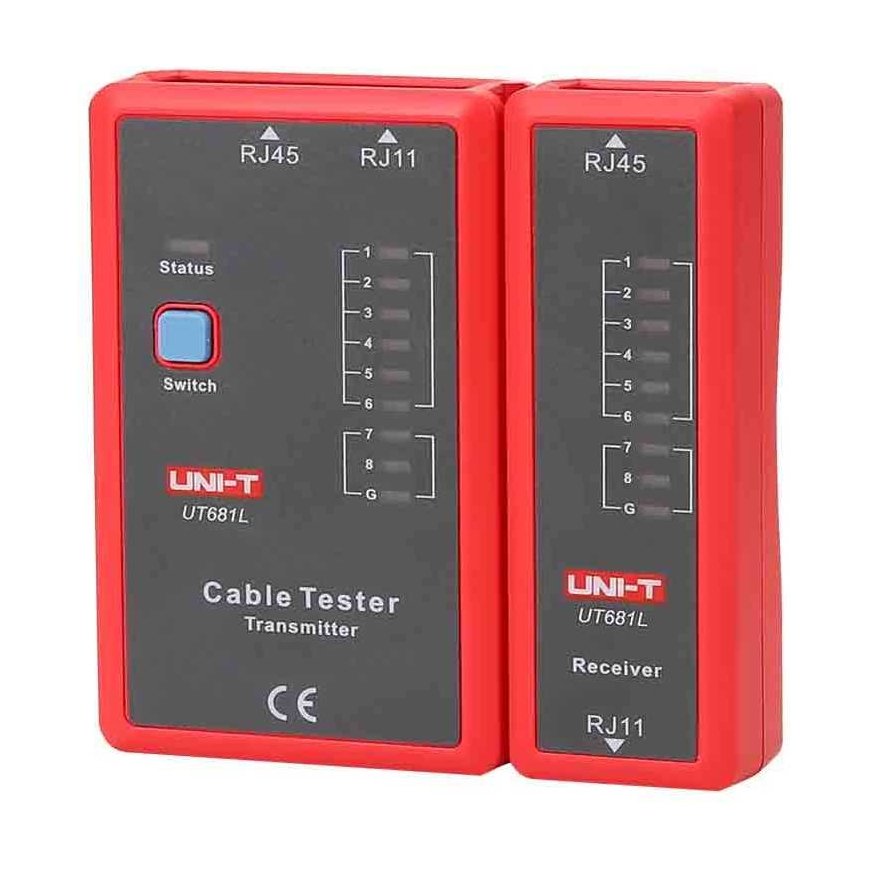

Computer network cable tester RJ45+RJ11 UT681L UNI-T

Specifications

Range

UT681L

UT681C

UT681HDMI

Description

Test function

Explore: RJ45/RJ11

√

Explore: RJ45/RJ11/BNC

√

Need to use RJ45 to BNC adapter

Explore: HDMI/MINI-HDMI

√

Quick test mode

√

√

LED1~LED8, LED_G

Slow test mode

√

√

LED1~LED8, LED_G

Scan test mode

√

LED1~LED19, LED_S

Full screen test mode

√

LED1~LED19, LED_S

Check for short circuits, cross connections, open circuits, etc.

√

√

√

Ethernet cable: shielded/unshielded test

√

√

√

Manual shutdown function

√

√

√

Auto power off function

√

√

√

If the device is not used for 10 minutes, it will automatically turn off.

One-key control

√

√

√

Power source: 9V battery

√

√

√

Low battery detection

√

√

√

Less than 7.2V

Application environment

Operating temperature: 0~40℃

√

√

√

Storage temperature: -10 ~ 50℃

√

√

√

Operating humidity: 20 ~ 80% RH

√

√

√

Storage humidity: 10 ~ 90% RH

√

√

√

Altitude: ≤2000 meters

√

√

√

Safety standard

CE EN61326-1: 2013; EN61326-2-2: 2013

√

√

√

General characteristics

Product color

Red and gray

Product net weight

Transmitter: 87g; Receiver: 51g

Product size

Transmitter: 102 mm x 62 mm x 28 mm; Receiver: 102 mm x 37 mm x 28 mm

Standard accessories

9 V battery, BNC and RJ45 adapter (UT681C)

Standard individual packaging

Gift box, English manual

Standard quantity per box

40 pcs.

Standard cardboard box measurement

455mm x 410mm x 225mm

Standard gross weight of a carton box

UT681L: 6.4 kg; UT681C: 8.7 kg; UT681HDMI: 9.5 kg
