UNIVERSAL MEASURING DEVICE UT-52 UNI-T
54,88 €
Ikm. maksa no 2.31 €
3579596 MIE0015
6935750552001
Piegāde 2-5 d.d.
Maksājumi 5x10.98€Šī prece Jūs ieinteresēja

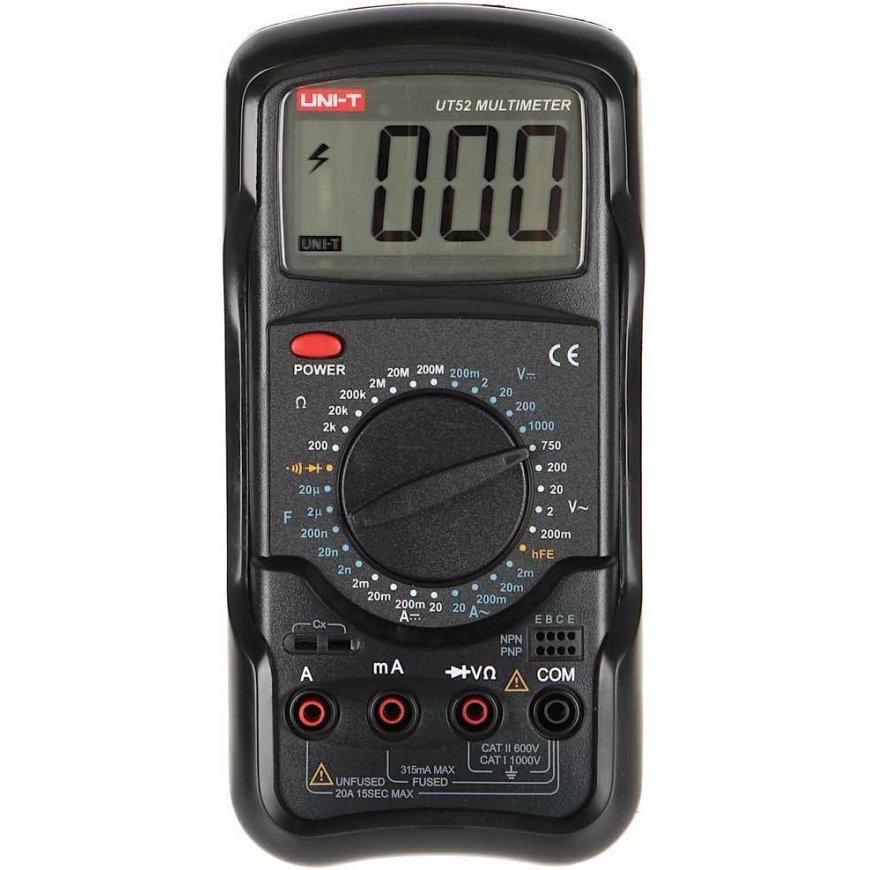

The UT-52 is a universal digital meter designed to measure voltage, current, resistance, inductance, capacitance, HFe, and to check the proper operation of diodes.
| DC voltage measurement : | 200 mV ± (0.5% + 1) @ 0.1 mV , 2V ± (0.5% + 1) @ 0.001V, 20V ± (0.5% + 1) @ 0.01V, 200V ± (0.5% + 1) @ 0.1V, 1000V ± (0.8% + 2) @ 1V |
| AC voltage measurement : | 200 mV ± (1.2% + 3) @ 0.1 mV , 2V ± (0.8% + 3) @ 0.001V, 20V ± (0.8% + 3) @ 0.01V, 200V ± (0.8% + 3) @ 0.1V, 750V ± (1.2% + 3) @ 1V |
| DC current measurement : | 2 mA ± (0.8% + 1) @ 0.001 mA , 20 mA ± (0.8% + 1) @ 0.01 mA , 200 mA ± (1.5% + 1) @ 0.1 mA , 20A ± (2.0% + 5) @ 0.01A |
| AC current measurement : | 2 mA ± (1.0% + 3) @ 0.001 mA , 20 mA ± (1.0% + 3) @ 0.01 mA , 200 mA ± (1.8% + 3) @ 0.1 mA , 20A ± (3.0% + 7) @ 0.01A |
| Resistance measurement : | 200 Ω ± (0.8% + 3) @ 0.1 Ω , 2 kΩ ± (0.8% + 1) @ 0.001 kΩ , 20 kΩ ± (0.8% + 1) @ 0.01 kΩ , 200 kΩ ± (0.8% + 1) @ 0.1 kΩ , 2 MΩ ± (0.8% + 1) @ 0.001 MΩ 20 MΩ ± (1.0% + 2) @ 0.01 MΩ , 200 MΩ ± (5%(RD-10) + 10) @ 0.1 MΩ * *RD - deduction value |
| Capacity measurement : | 2nF ± (4% + 3) @ 0.001nF, 20nF ± (4% + 3) @ 0.01nF, 200nF ± (4% + 3) @ 0.1nF, 2 µF ± (4% + 3) @ 0.001 µF , 20µF ± (4% + 3) @ 0.01µF |
| Inductance measurement : | - |
| Frequency measurement : | - |
| Temperature measurement : | - |
| Automatic change of measurement scale : | - |
| hFE : | ✔ |
| Diode test : | ✔ |
| Audible circuit integrity alarm : | ✔ |
| Checking logical TTL states : | - |
| RS-232 : | - |
| Main features : | Large, easy-to-read LCD display Low battery indicator Aesthetic and solid construction |
| Power supply : | 9V battery, type 6F22 - included |
| Weight : | 0.5 kg |
| Dimensions : | 203 x 98 x 56 mm |
| Manufacturer / Brand : | UNI-T |
| Warranty : | 2 years |
