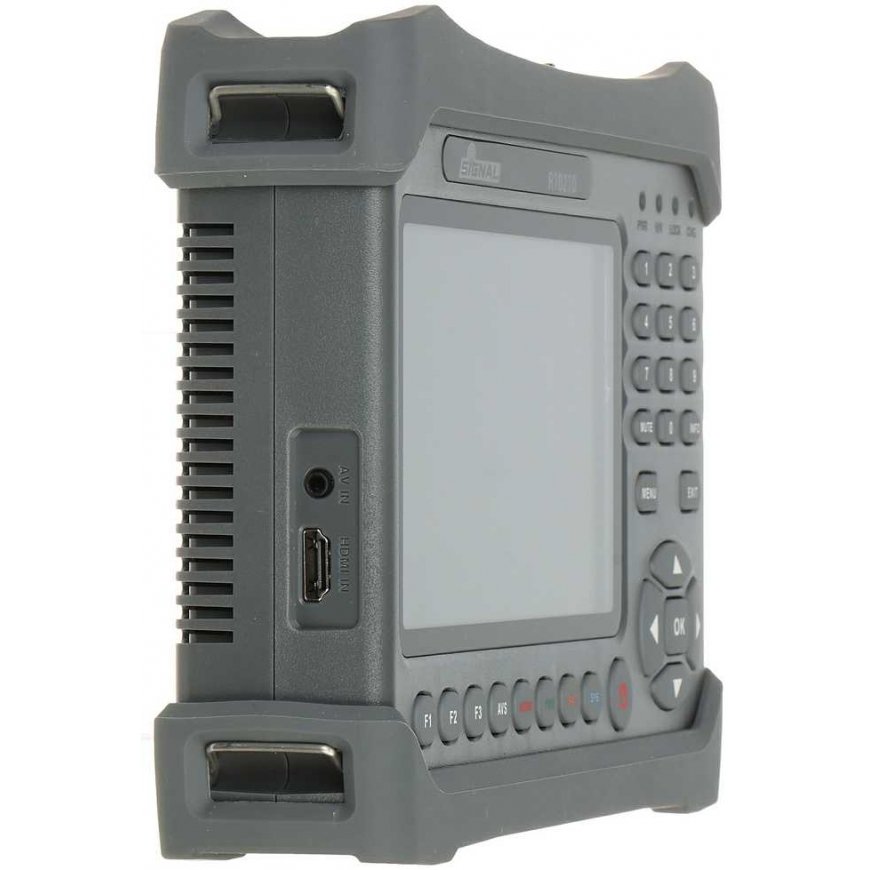

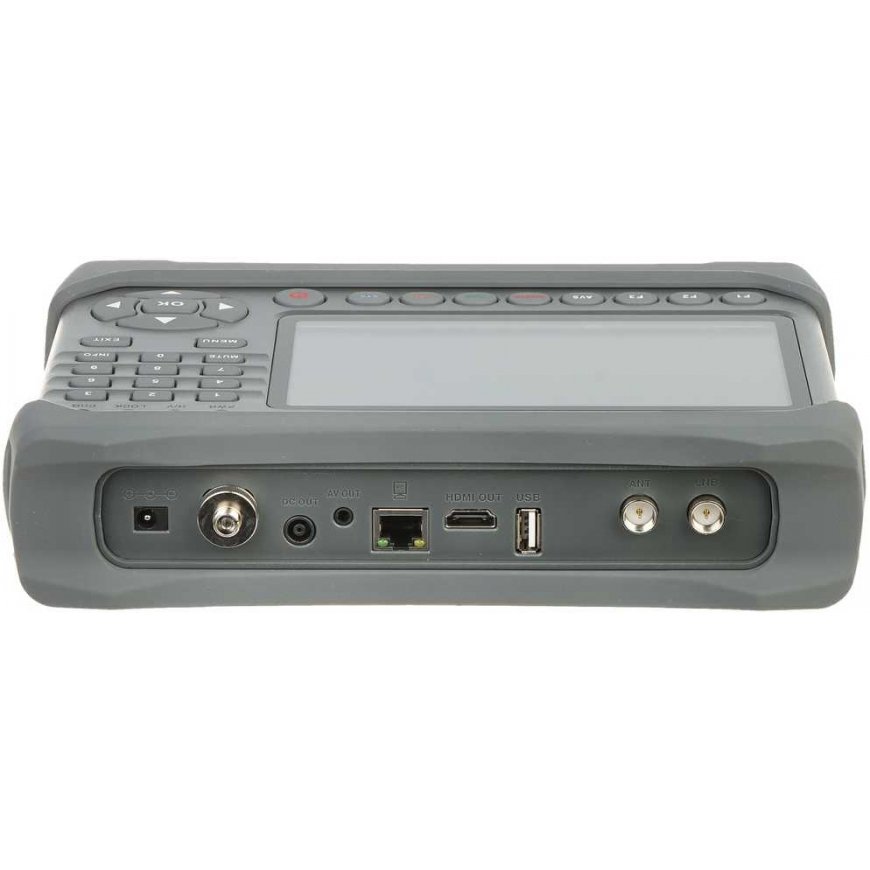

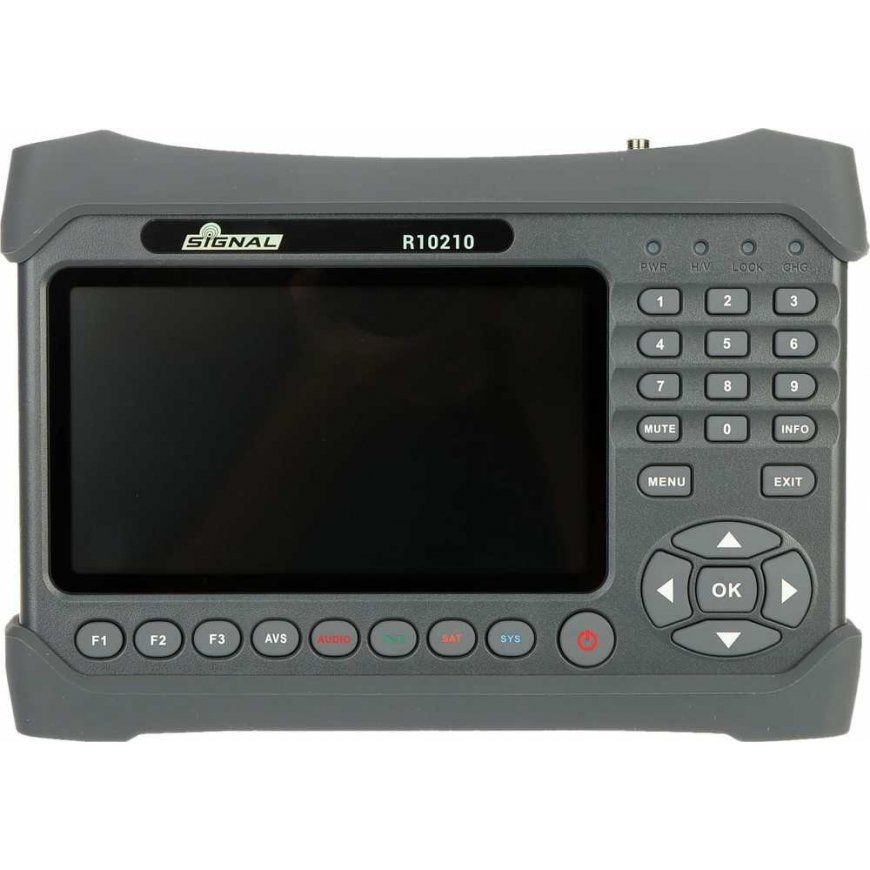

UNIVERSAL METER ST-6986 DVB-T/T2 DVB-S/S2 DVB-C SIGNAL
409,00 €
Ikm. maksa no 11.43 €
3555686 ST-6986
5902887070631
Šī prece nav vairs pieejama
Maksājumi 5x81.80€Šī prece Jūs ieinteresēja
ST-6986 allows you to measure TV signals in DVB-T/T2, DVB-S/S2, DVB-C networks.
A clear menu that makes work easier for any installer.
| Output and input : | Inputs: IEC - Ant socket, "F" - LNB socket, HDMI , AV - mini Jack input, Fiber optic inputs SC / FC Outputs: HDMI , AV - mini Jack output, Power output, 12 V DC |
| Frequency range : | 48 MHz ... 862 MHz @ DVB-T / DVB-T2 / DVB-C, 950 MHz ... 2150 MHz @ DVB-S / DVB-S2 |
| Signal level : | -20 ... +80 dBm @ DVB-S / DVB-S2, -20 ... +80 dBm @ DVB-T / DVB-T2 / DVB-C, -40 ... +23 dBm - Optical power meter |
| Converter power supply : | 13 / 18 V, max. 400 mA |
| Switching between bands : | 0 / 22 kHz |
| Antenna power supply : | 5 / 12 / 24V @ 100mA |
| DiSEqC : | 1.0, 1.1,1.2, 0/22 kHz Tone, Unicable (dSCR), Wideband systems support |
| Modulation : | QPSK / 8PSK / 16APSK @ DVB-S / DVB-S2 QPSK / 16-QAM / 64-QAM / 256-QAM @ DVB-T / DVB-T2 / DVB-C |
| Video signal test : | - |
| Programming and software update : | via USB interface |
| Battery powered : | Li-Ion battery 7.4 V / 5000 mAh |
| Power supply : | 12 V / 1.5 A (power supply included) |
| Power consumption : | ≤ 10W |
| Main features : | 7 " LCD display - 1280 x 720 px Signals DVB-T/T2/C, DVB-S/S2 @ MPEG2/MPEG4 dimensions Built-in tuner DVB-S/S2, DVB-T/T2/C providing constant monitoring of the set channel Built-in video decoder MPEG-2 / H.264 / H.265 Azimuth angle and elevation calculation Constellation diagram Spectrum analysis for the entire frequency band Signal measurement with dBμV, C/N, BER, MER Signal quality and strength measurement Percentage signal quality indication Built-in optical power meter - Optical wavelength : 850,1300, 1310, 1330, 1490, 1550, 1625 nm USB ports for multimedia files wma, mp3, mp4, avi, jpg, jpeg, bmp, img support Automatic identification DisEqC High measurement accuracy Comes with a practical case |
| Weight : | 1.17 kg |
| Dimensions : | 259 x 181 x 59 mm |
| Languages supported : | Polish, English, Czech, Danish, French, Greek, Spanish, Dutch, German, Slovenian, Portuguese, Russian, Turkish, Hungarian, Italian |
| Manufacturer / Brand : | SIGNAL |
| Warranty : | 2 years |
