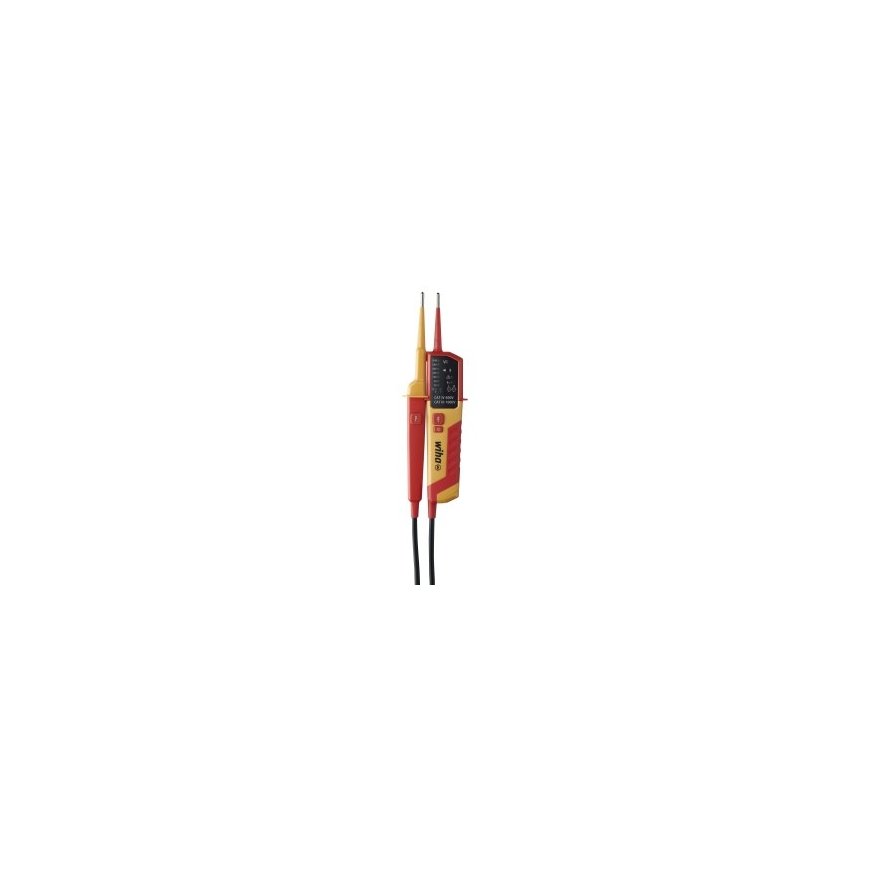

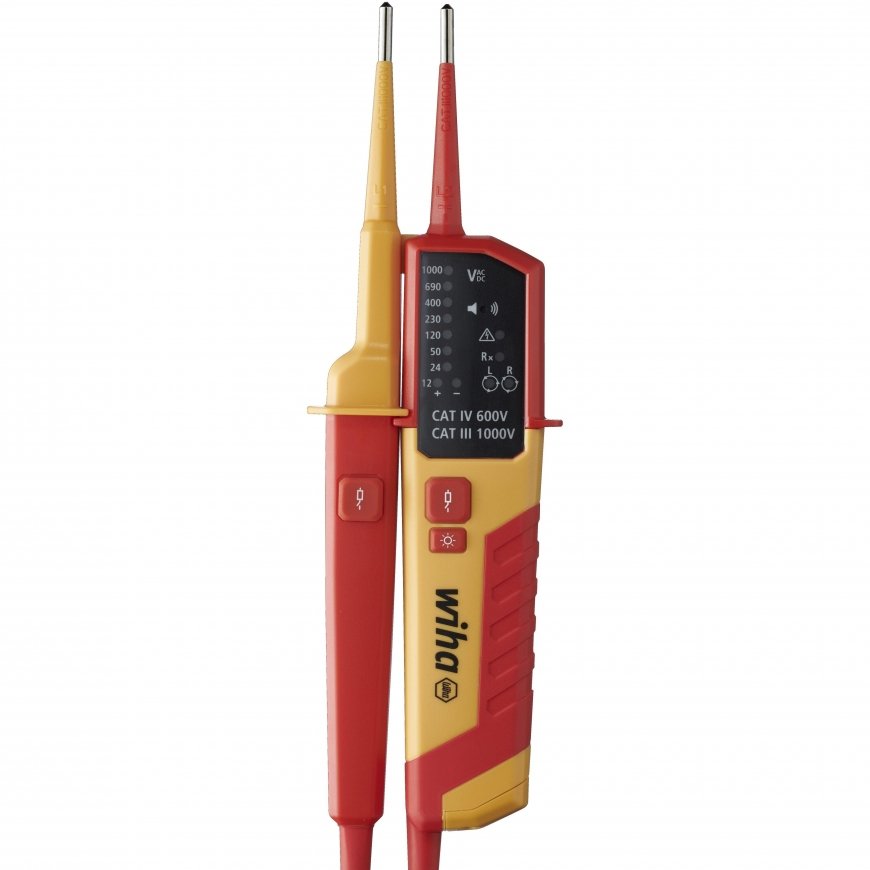

Voltage meter Wiha W45216 12-1000 V

Item description
Safety rule: Set the voltage to zero! The Wiha Voltage and Continuity Tester is your ideal daily companion to easily check this mandatory condition of the safety rule and to help you fulfill the various requirements of your daily work. This allows convenient testing of voltages from 12V to 1000V AC or 1500V DC. In addition, it can be used for continuity, optical rotation field testing, single pole testing and automatic polarity detection. The LED display ensures easy-to-read measurement results. An additional beep indicates current flow during the continuity check. Thanks to the integrated spacer, it is also possible to conveniently check the sockets with one hand. In addition, the Wiha voltage tester has an integrated flashlight function that ensures optimal lighting conditions even in poorly lit working environments. By simultaneously pressing both buttons on both handles of the test tips, the operation of the FI protection switch can be checked with the load connected. According to the measurement categories CAT III up to 1000 V and CAT IV up to 600 V, the Wiha voltage and continuity tester ensures maximum safety when working in building installations and directly at low voltage sources.

Dimensions
240 x 75 x 30 mm
Measurement category
CAT III up to 1000 V and CAT IV up to 600 V.
Standard
IEC 61243-3:2014. IP 64. CE certified.
Application
To set zero voltage. For standardized voltage testing, continuity testing, rotational field testing, incl. FI circuit breaker measurement.

Order-No. 45216
EAN 4010995452162
Battery 2x AAA-battery
Voltage V AC min - max 12 - 1000
Voltage V DC min - max 12 - 1500
Pollution level 2
Remote voltage test no
ATEX approval no
Compatible with photoelectric no
eMobility compatible no
Built-in flashlight Yes
FI verification Yes
Display LED
Display LED
Protection class IP64
Rotation field indication LED L, R
Continuity test LED and akustischer Ton
Drehfeldanzeige LED L, R
LED amplification and acoustic tone
Temperature -15°C - 50°C
Higher temperature -20°C - 60°C
High NN in 2000
Einpolige Phasenprüfung 100 - 700 V AC
Einpolige Phasenprüfung 100 - 700 V AC
Drehfeldprüfung 170 - 1000 V Phase zu Phase AC 50/60 Hz
Durchgangstest Messbereich 0-500 kΩ + 50 %
LED ELV Anzeige > 50 VAC, > 120 V DC
LCD Bereich X
LCD resolution X
LCD Accuracy X
LCD "Überlaufenzeige X".
Characteristics < 0.5 s and 100 % des nominalellen Wertes
Sicherheitsstrom is < 3.5 mA (at 1000 V)
Messbetrieb 30 s ON (Betriebszeit), 240 s OFF (Wederherstellungszeit)
Battery about 80 mA
Luftfeuchtigkeit max 85% RH
Acoustic Signal Ja
