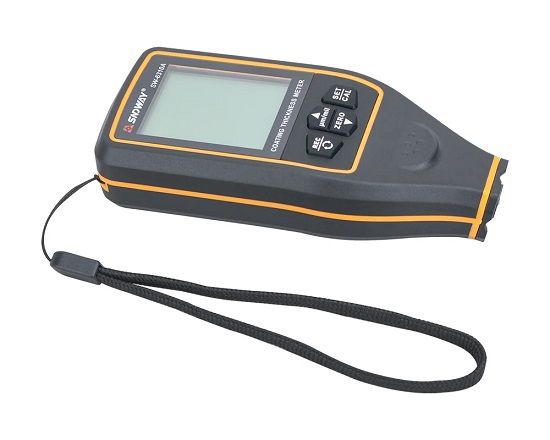

Sndway2 Digital Coating Thickness Gauge
Sndway2 Digital Coating Thickness Gauge

Produkta tonis un faktiskā krāsa var atšķirties no attēlā redzamā, jo attēli ir ilustratīvi. Produkta apraksts ir vispārīgs un, iespējams, tajā nav iekļautas visas produkta īpašības.

Sndway2 Digital Coating Thickness Gauge

149,00 €
Ikm. maksa no 4.74
2541438

SW-6310A

6971978410853

Piegāde 2-4 d.d.

Maksājumi 5x29.80€
Skaits
Šī prece Jūs ieinteresēja
(Lasīt pakalpojumu sniegšanas noteikumus)
Coating thickness gauge

The digital coating thickness gauge allows you to check the thickness of the paint or varnish layer on magnetic (iron, steel) and non-magnetic (aluminum, copper, brass) surfaces. It is used for non-invasive measurement of paint thickness on car bodies. It is also intended for measuring the thickness of non-magnetic coatings (including paint, varnish, glass, plastic, epoxy resin, putty, enamel, etc.) on steel, galvanized steel and aluminum. The gauge can be used to check the thickness of the varnish layer before starting the polishing process. It has a wide measurement range (up to 1700µm), quickly and accurately performs measurements and prepares for a new measurement. Suitable for use in car workshops, service stations, vehicle inspection stations, used car sales, paint shops and other diagnostic areas.

Features:
Non-invasive magnetic measurement technology.
The meter is calibrated, the kit includes calibration plates for checking accuracy.
The FE (iron) calibration plate is intended to prepare the device for measuring the coating of magnetic surfaces, the NFE (aluminum) calibration plate - for non-magnetic surfaces.
Selectable measurement units (1mil=25.4µm; 1µm=0.03937mil).
The data storage can hold up to 30 measurements, turning off the power does not delete the data.
Clear 2-inch illuminated display with low-battery indicator. The screen can be rotated 180 degrees to make it easier to read the measurement results.
Single/continuous measurement.
Warnings when (upper/lower) measurement limits are exceeded.
Automatically shuts off after 60 seconds.
Informs about the measurement results with an acoustic signal.
It measures the surface of iron, steel, galvanized steel, copper and aluminum - suitable for use in industry and household.
Ergonomic shape, comfortable to hold in the hand, durable body. A black zippered storage case is included.


Technical data:
Measuring range: Magnetic materials 0~1700 µm; Non-magnetic materials 0~1700 µm.
Measurement resolution: 0.1µm @(0~99.9µm); 1µm @(100~1700µm).
Error: +/-(2+2%*H)µm @(0-500µm); +/-(2.5%*H)µm @(500-1700µm).
Min. measuring area: 25x25mm (magnetic/non-magnetic materials).
Min. curvature: convexity 5mm; concavity 30mm.
Min. measured thickness: Magnetic materials 0.2mm; Non-magnetic materials 0.05mm.
Measurement units: mil / µm (1mil=25.4µm; 1µm=0.03937mil).
Batteries: 2x 1.5V AAA (included).
Data storage: 30 measurements.
Operating temperature: 0°C ~ +50°C.
Operating humidity: 10-80% RH.
Storage temperature: -10°C ~ +60°C.
Storage humidity: 10-70% RH.
Calibration: zero point calibration / calibration plate calibration.
Threshold measurement: Yes.
Automatic device shutdown: within 60 seconds.
Gauge size: 120x52x26 mm.
Storage case size: 200x110x45mm.
Box size of calibration plates: 28x54x11mm.
Weight: 87g.


The set includes: meter, batteries 2x AAA, storage strap, carrying case, plastic closed box for storing calibration plates, 5x calibration plates of different thicknesses, FE (iron) calibration plate, NFE (aluminum) calibration plate, user manual.


Warranty: 24 months
