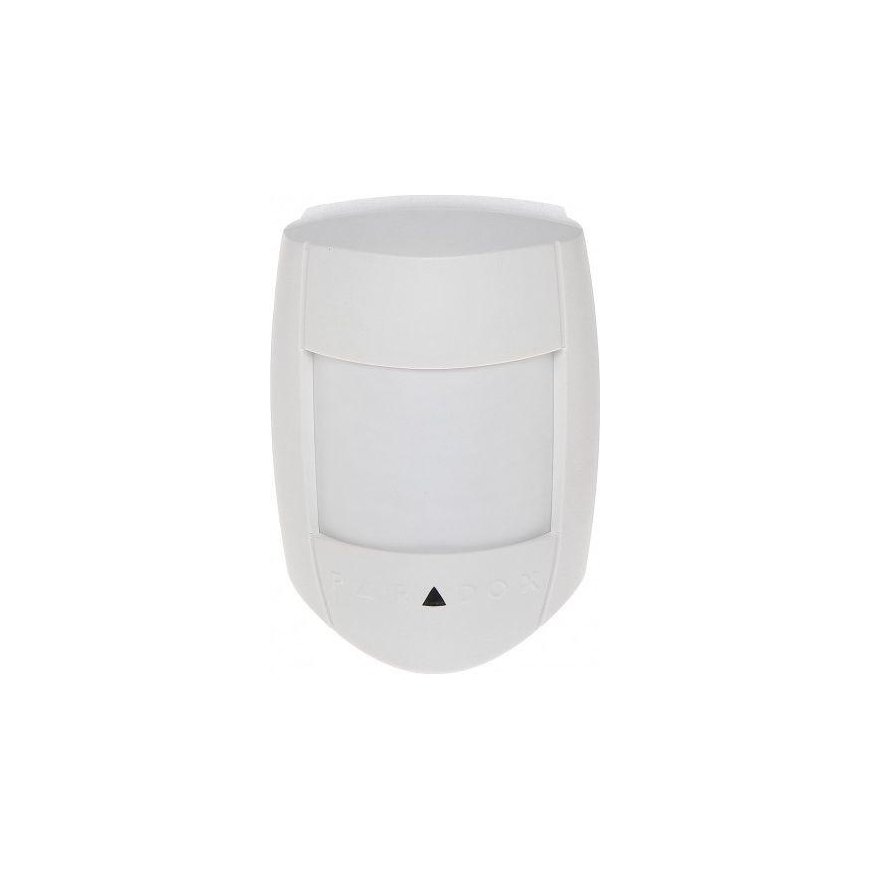

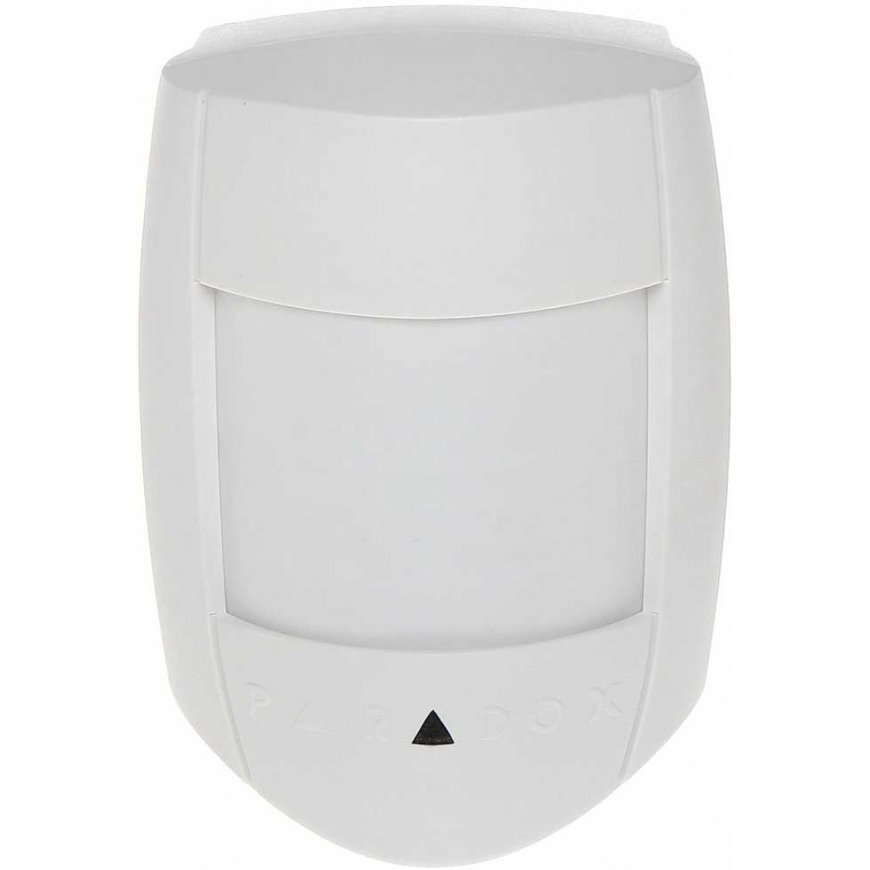

PIR SENSOR DG65+ PARADOX
83,34 €
63,13 €
Monthly payment from 2.53 €
3619848 DG-65/PLUS
5902887015366
Shipping 2-5 b.d.
Pay 5x12.63€You are interested in this product?
The passive infrared sensor DG-65/PLUS is designed for indoor use.
Thanks to advanced signal analysis algorithms, it is characterized by very stable operation and a low probability of false alarms.
| Usage : | For indoor use |
| Pyroelement : | quadruple |
| Sensor type : | Passive IR (PIR) |

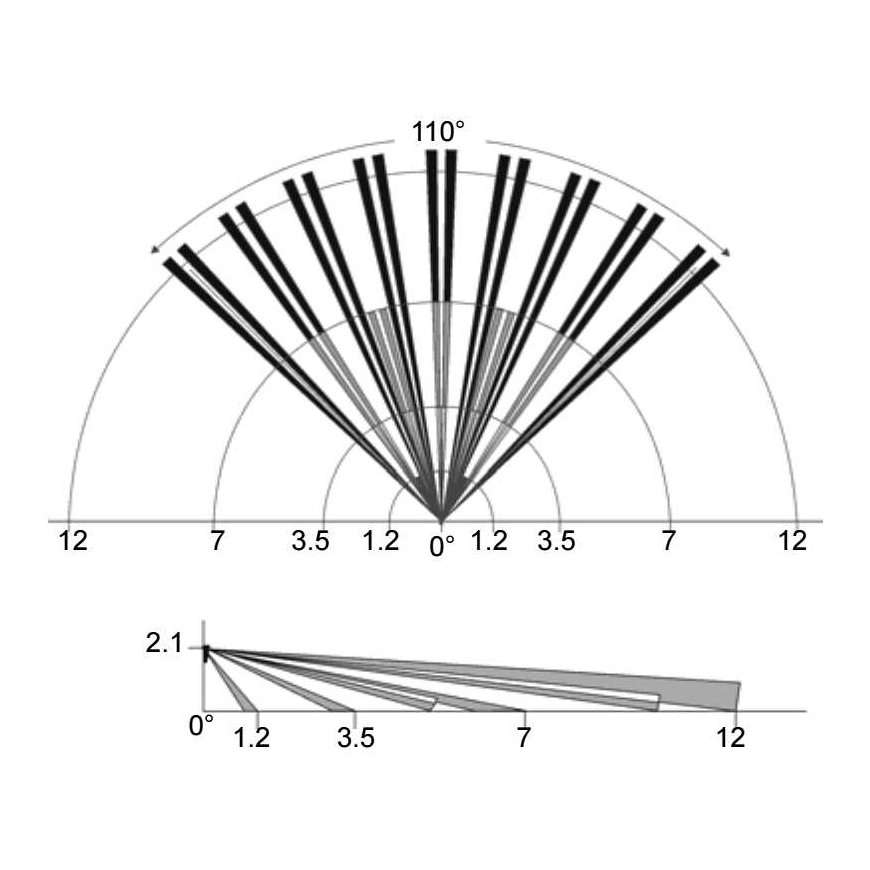

| Distance : | 12 x 12 m |
| Detection angle : | 110° |
| Recommended installation height : | 2.1 ... 2.7 m |
| Sensitivity adjustment : | - |
| Self-diagnosis : | - |
| Animal resistance : | - |
| Pre-alarm function : | ✔ |
| Maximum output load : | 28V DC / 100mA |
| Alarm outputs : | NC |
| Violation alarm time : | 3 seconds |
| Detected movement speed : | 0.2 ... 3.5 m/s |
| Digital temperature compensation : | ✔ |
| Power supply : | 9 ... 16 V DC |
| Maximum current requirement : | 15 mA |
| Main features : | Replaceable Fresnel lenses Anti-sabotage security measures Interlock Sensor Geometry (ISG) technology Patented motion analysis (without analog signal processing) Digital technology for pulse signal processing Digital Shield algorithm reduces false alarms Metal shield protects against EMI, RFI interference Test mode EN 50131 Safety class II |
| Environmental class : | Class I |
| Working temperature : | -20°C ... 50°C |
| Color : | White |
| Weight : | 0.096 kg |
| Dimensions : | 74 x 101 x 56 mm |
| Country of origin : | Canada |
| Manufacturer / Brand : | PARADOX |
| Warranty : | 2 years |
