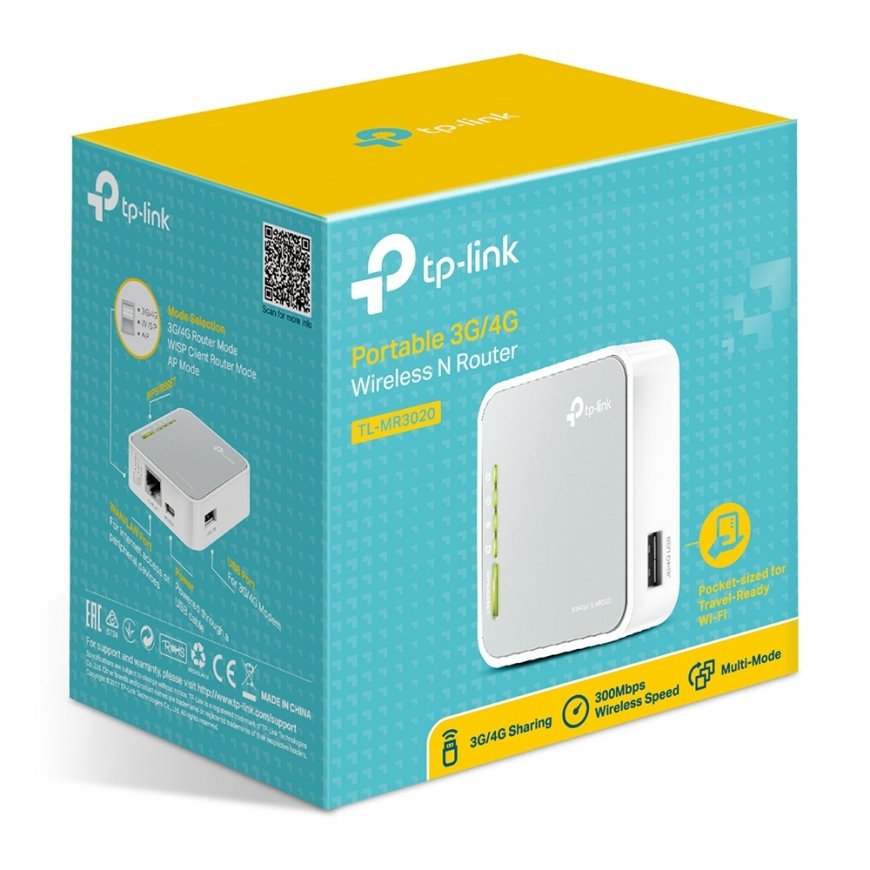

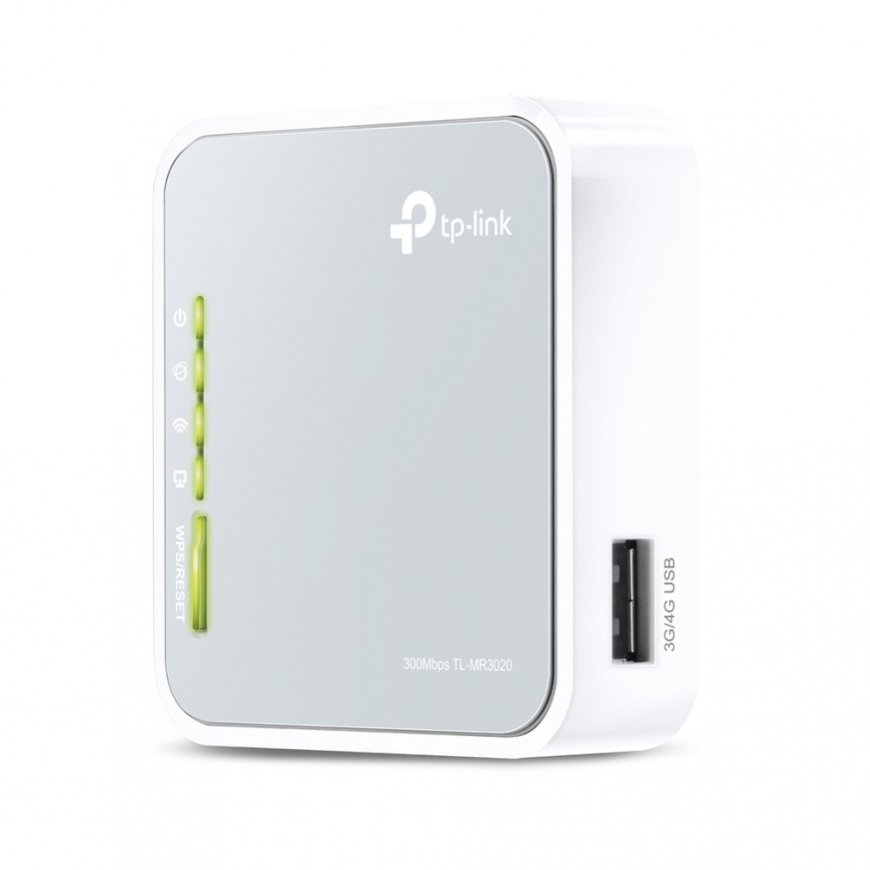

TP-Link Portable 3G/4G Wireless N Router
2408998 TL-MR3020 V3.2
6935364082345
In stock
With a travel-sized design, a mini USB port, Wireless N speeds up to 150Mbps and a high compatibility with 3G modems, TP-LINK’s new Portable 3G/3.75G Wireless N Router,
TL-MR3020 is the ideal device to provide wireless cloud for iPads™, iTouches™, Android™ Phones, Kindles™ and the vast majority of other portable Wi-Fi enabled devices.
Travel-sized Design
With the travel-sized and compact design, TL-MR3020 is small enough to take on the road and make sure that you can share a 3G internet connection wherever wireless 3G coverage is available.
Travel Router with 3G/4G Function
TL-MR3020 is the ideal travel partner for people on the go. 3G Router Mode enables you to plug in a 3G USB modem and share it wirelessly. Its Travel Router Mode (AP Mode) allows you to conveniently setup an internet connection utilizing a hotel WAN cable. Meanwhile, you can also use the switch on the side of the router to choose between Travel Router Mode, 3G Router Mode and WISP Client Router Mode based on your different requirements.
WAN connection | |
| DSL WAN | No |
| Ethernet WAN | Yes |
| SIM card slot | No |
| 3G/4G USB modem compatibility | Yes |
Wireless LAN features | |
| Wi-Fi band | Single-band (2.4 GHz) |
| WLAN data transfer rate (max) | 150 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Network | |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100 |
| Port forwarding | Yes |
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN interface type | Fast Ethernet |
Mobile network | |
| 3G | Yes |
| 4G | Yes |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| DC-in jack | Yes |
| USB charging port | Yes |
| USB port | Yes |
| Memory card slot(s) | No |
Management features | |
| Web-based management | Yes |
| Reset button | Yes |
Security | |
| DMZ support | Yes |
| Security algorithms | WPA-PSK, WPA2-PSK, 64-bit WEP, 128-bit WEP |
| Firewall | Yes |
| MAC address filtering | Yes |
| Filtering | Yes |
Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
Design | |
| LED indicators | Yes |
| Product colour | White, Grey |
| Product type | Portable router |
Antenna | |
| Antenna design | Internal |
Power | |
| Power source type | USB, AC |
| Output voltage | 5 V |
| Output current | 1 A |
Operational conditions | |
| Operating temperature (T-T) | 10 - 60 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions | |
| Width | 74 mm |
| Depth | 67 mm |
| Height | 22 mm |
Packaging data | |
| Package width | 110 mm |
| Package depth | 109 mm |
| Package height | 81.5 mm |
| Package weight | 210 g |
System requirements | |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows XP Home, Windows XP Professional, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home x64, Windows 2000, Windows 2000 Professional, Windows 98SE, Windows Vista Business, Windows NT |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Other features | |
| WLAN data transfer rates supported | 150 Mbit/s |
| Frequency range | 2.4 - 2.4835 GHz |
| Mobile network connection | Yes |
Certificates | |
| Certification | CE, FCC, RoHS |
Logistics data | |
| Harmonized System (HS) code | 85176990 |
Packaging content | |
| AC adapter included | Yes |
| Cables included | USB, LAN (RJ-45) |
