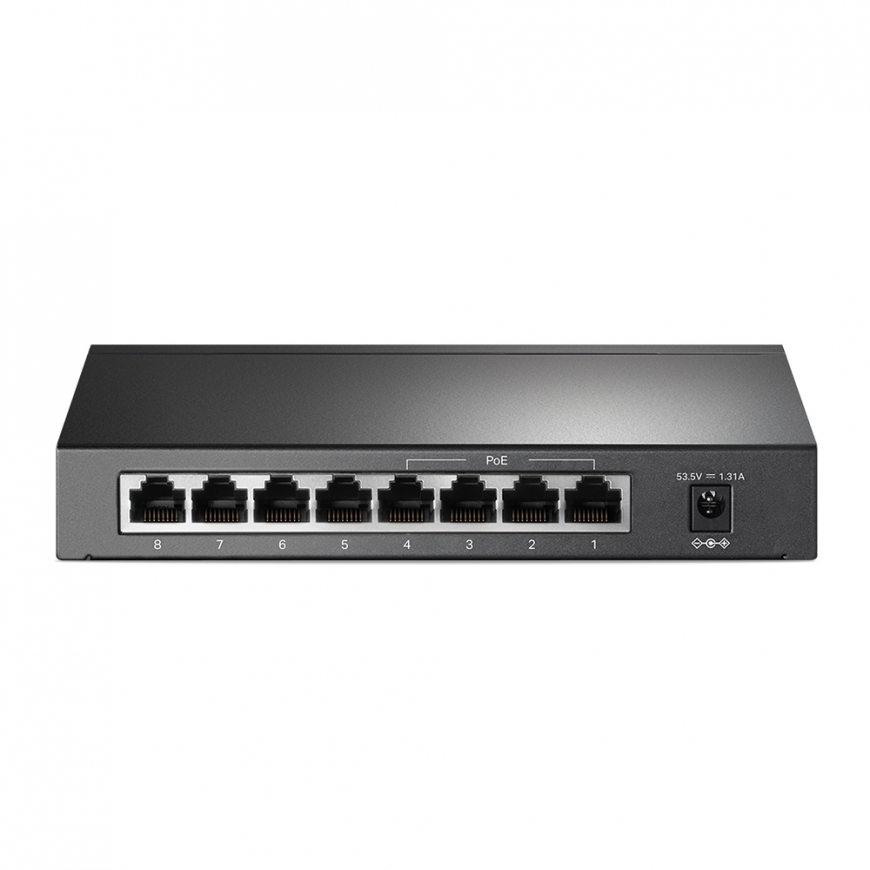

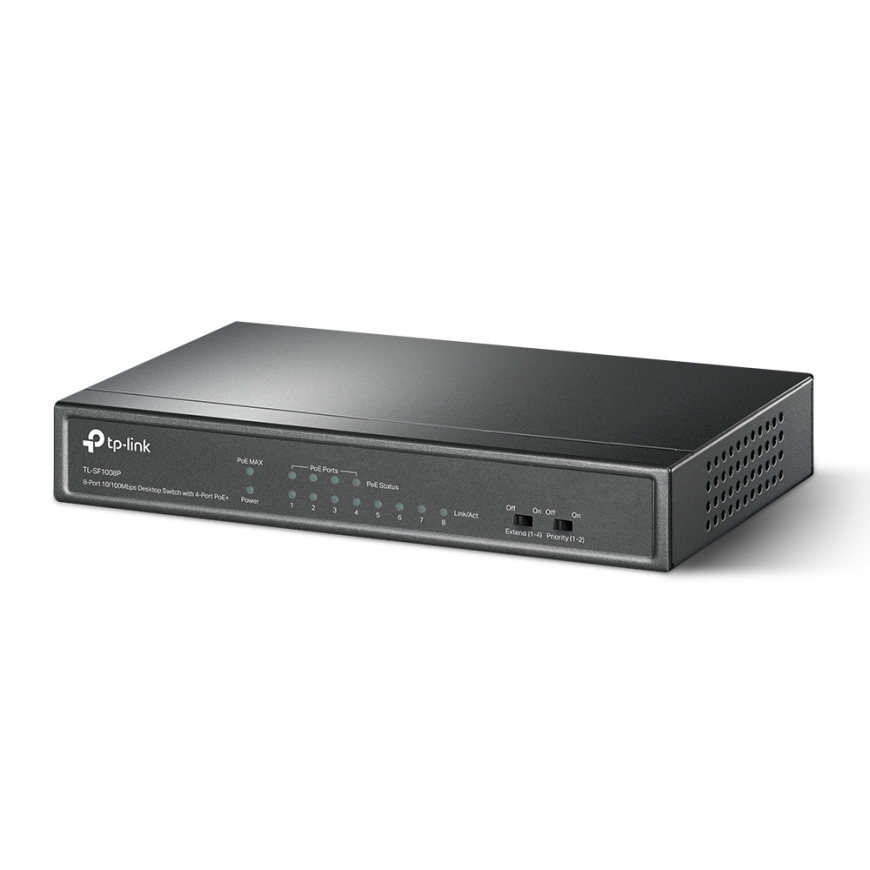

TP-Link 8-Port 10/100Mbps Desktop PoE Switch with 4-Port
229146 TL-SF1008P V5
6935364021665, 0132018280416, 0151903616390, 0163120466832, 0168141533228, 0172302745931, 0172304262870, 0320127538195, 0523160924837, 0538141067076, 0617407587067, 0631058202698, 0631058270024, 0718117589799, 0731215285530, 0777786260729, 0778890698521, 0803982828842, 0807030504054, 0809186279756, 0809385674598, 0845973020682, 0872182678403, 0883827238456, 0898029647098, 1320010355327, 4056203023250, 5053086246591, 5053313217691, 5053460941494, 5053973919386, 5054230286456, 5054484135128, 5054533135123, 5054629099629, 5055205187167, 5425656013078, 5554442245086, 6213759749098, 6315487614171, 6935364020682, 7123290477475, 7337331849613, 8459730206824
Shipping 5-7 days
TL-SF1008P is an 8 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power over Ethernet
4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
-Overload Arrangement
TL-SF1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 57W, a priority will be arranged among the PoE ports, then the system will cut o‑ the power of the lowest-priority port.
-Port Priority Function
Priority (port-1=port-2=port-3>port-4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 57W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 12W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 12W, no power will be supplied to Port 4.
Easy To Use
TL-SF1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-LINK’s TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.
Network | |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
Security | |
| MAC address table | 2000 entries |
Protocols | |
| IPv4 & IPv6 features | IPv6 portal |
Design | |
| LED indicators | Yes |
| Product colour | Black |
| Housing material | Metal |
| Wall mountable | Yes |
Features | |
| Heat dissipation | 248.93 BTU/h |
Power | |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions | |
| Width | 171 mm |
| Depth | 98 mm |
| Height | 27 mm |
Packaging data | |
| Package width | 223 mm |
| Package depth | 280 mm |
| Package height | 68 mm |
| Package weight | 970 g |
| Package type | Box |
Other features | |
| Input current | 1.31 A |
| Rack mounting | No |
Technical details | |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
Logistics data | |
| Harmonized System (HS) code | 85176990 |
Packaging content | |
| AC adapter included | Yes |
Sustainability | |
| Sustainability compliance | Yes |
