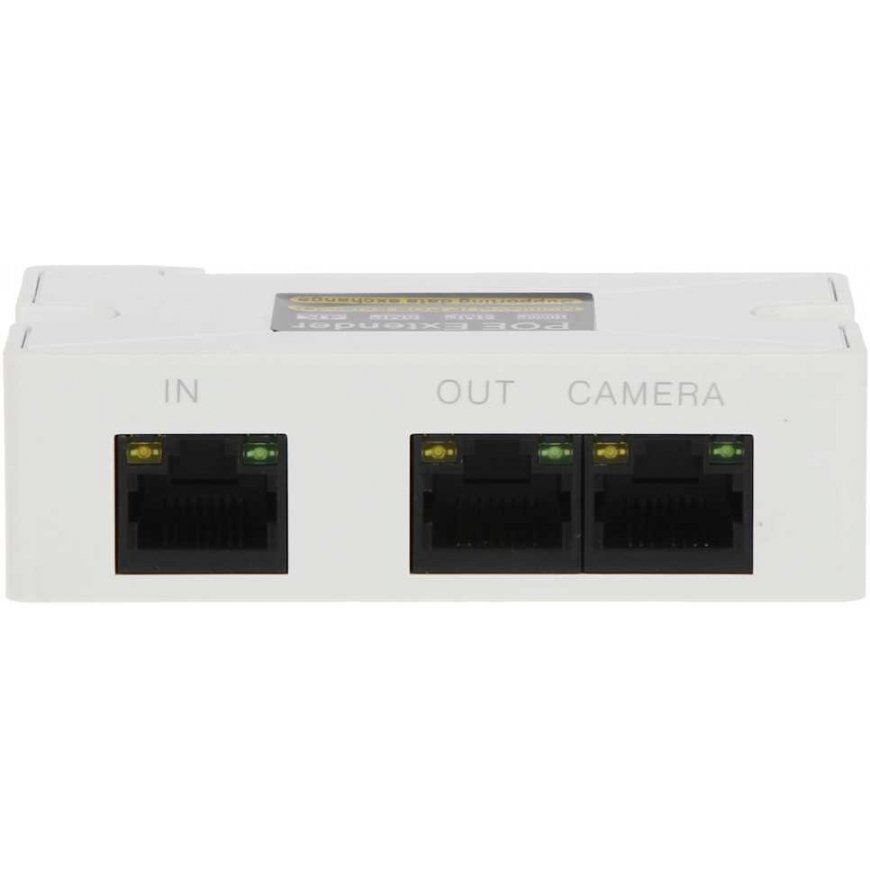

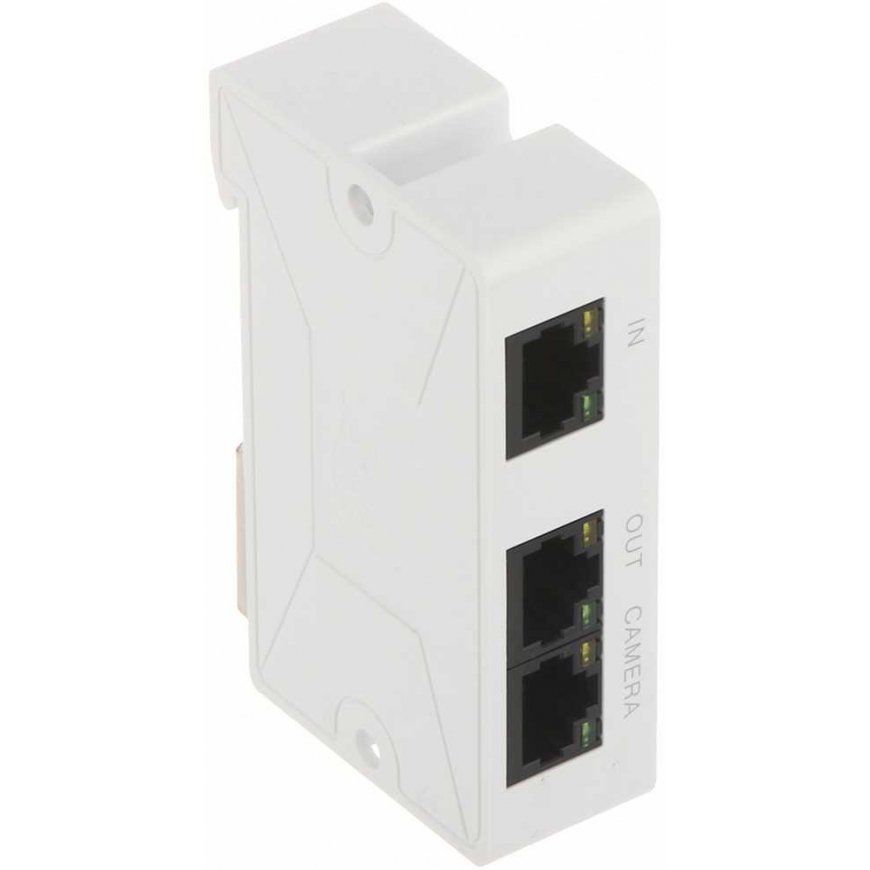

Splitter TST SWITCH POE PFT1310 3 PORTS
35,12 €
3598811 PFT1310
5902887056918
Tarneaeg 2-5 t.p.
Kauba vastu huvi?

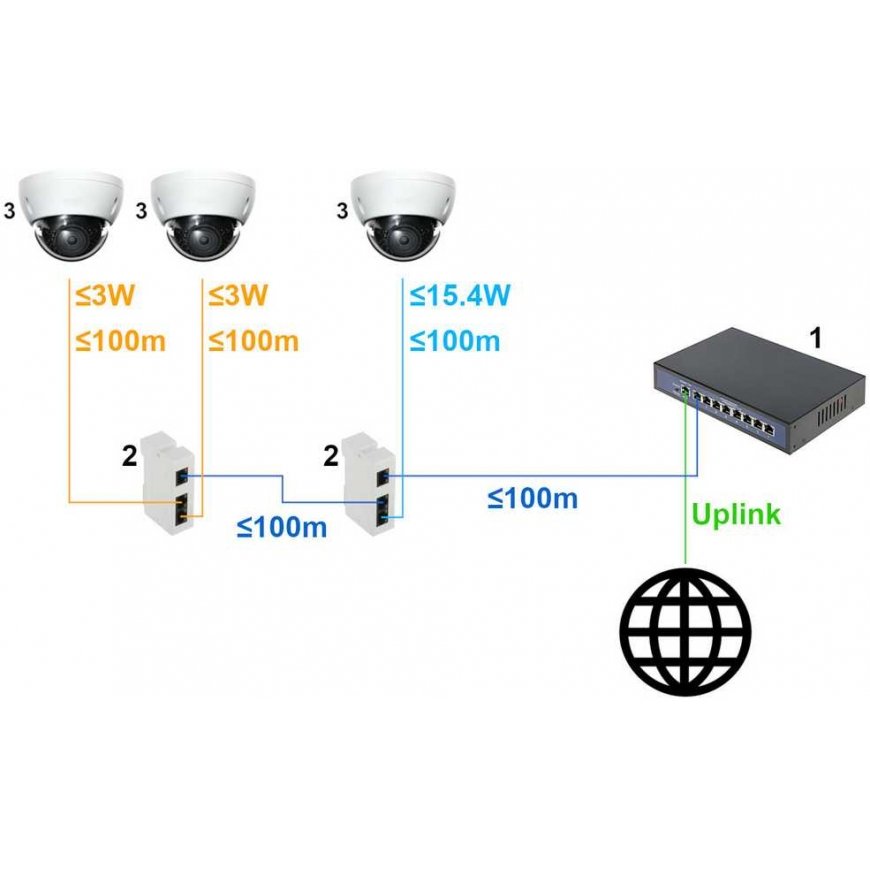

The PFT1310 device allows you to connect 2 cameras with a PoE power source using a single Ethernet line.
Cascading 2 expanders allows you to connect to 3 cameras in this way.
The device is powered by a PoE switch or other device compatible with this standard.
Thanks to this, neither the extender nor the camera connected to it requires any additional power.
| LAN ports : | 1 x RJ45 10/100 Base-T + power input: PoE (802.3af/at), 2 x RJ45 10/100 Base-T + PoE (802.3af) |
| Management via WWW/console : | - |
| LED diodes : | LAN, PoE |
| Transmission speed : | 10 / 100 Mbps |
| Maximum output power : | 15.4 W @ PoE port - First device 3 W @ PoE port - Second device in cascade |
| Main features : | Cascade connection option The device can act as a network LAN extender and PoE power supply |
| Power consumption : | 0.3W |
| Distance : | 100 m - Input 100 m - Output |
| Protective measures : | From surges |

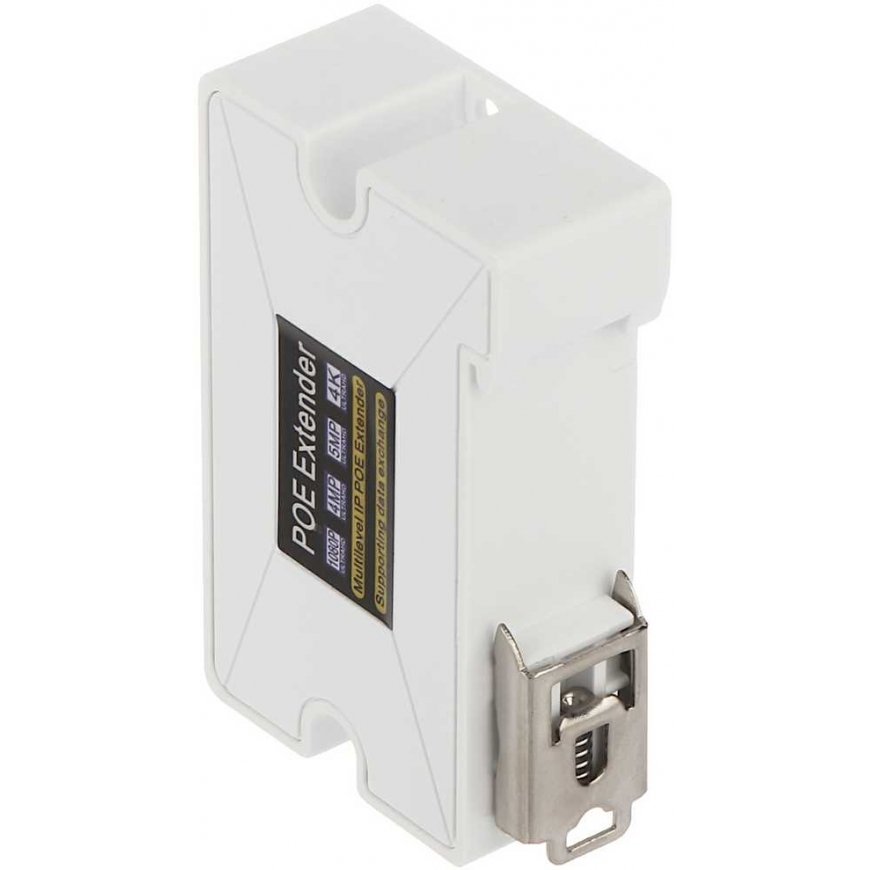

| Body : | Plastic, DIN, TS-35 rail mounting |
| Power supply : | PoE (802.3af/at) |
| Operating temperature/relative humidity : | -30 ... 65 °C / 10 ... 90 % |
| Weight : | 0.05 kg |
| Dimensions : | 79 x 52 x 23 mm |
| Warranty : | 2 years |
