Revopoint Range 2 3D scanner

The Revopoint RANGE 2 is a portable, handheld, dual-depth camera structured infrared light 3D scanner designed to capture large objects such as furniture, people and vehicles. Its 60% longer capture range and scan distance provide better tracking and faster scanning.

Features:

• 16 frames per second scanning speed
• Up to 0.1mm Single shot accuracy
• 400 – 1300mm Working distance
• 4 flash LEDs for better color scanning
• 9-axis IMU
• USB Type-C and Wi-Fi 6

Reliability is important

Capture objects reliably and consistently with RANGE 2 with single-shot accuracy of up to 0.1 mm.

Greater capture

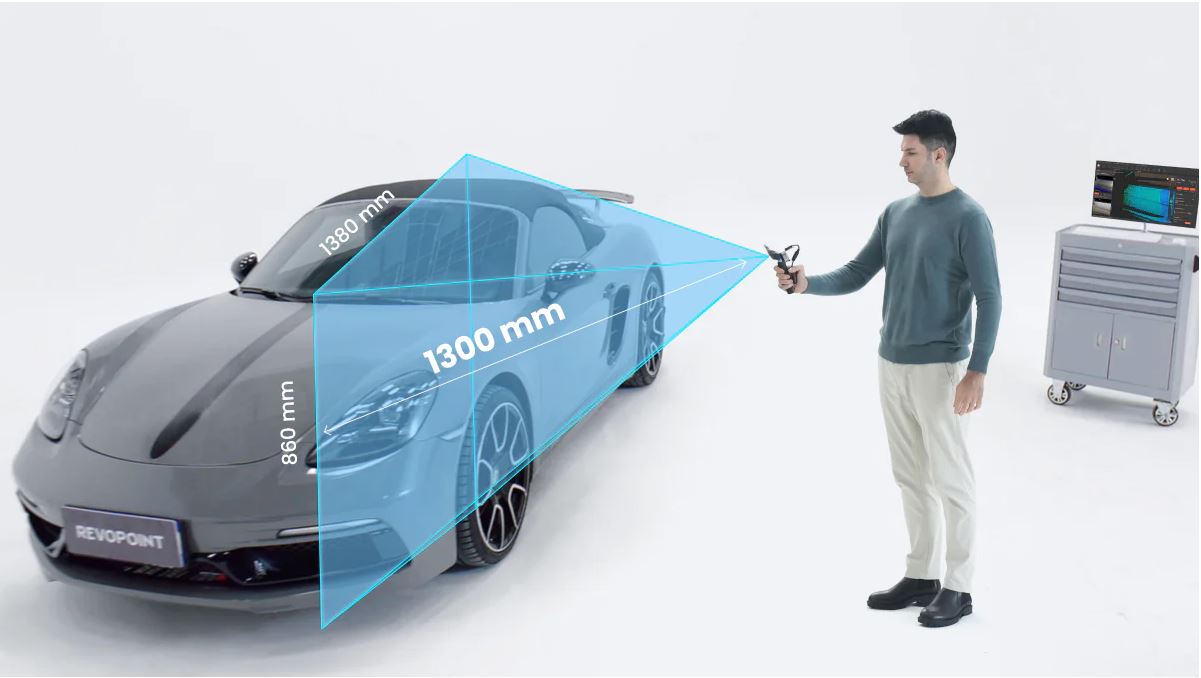

Make short work of scanning large objects with RANGE 2's new depth cameras, delivering a 60% larger 1,300mm working distance and 860mm x 1,380mm single capture range for faster, better surface data capture.

Updated camera system

Create sharper 3D models and capture better color scans with RANGE 2's higher-resolution RGB and depth cameras.

Up to 2 megapixel depth/RGB camera resolution

Up to 0.1mm fused point distance

Pop-up color scans

Create accurate 3D models using RANGE 2's new high-resolution, larger-aperture RGB camera that captures more color detail, and a 4-flash LED lighting system that eliminates shadows for consistent color capture.

Smarter monitoring

The improved RANGE 2 tracking system provides better frame stitching using 9-axis IMU motion data, eliminating broken frames caused by rapid movements and shake.

Effective scans

Start saving dozens of hours of measurement and modeling time with RANGE 2's fast capture speed to create detailed 3D models in minutes, ready to replicate or modify. Streamline your 3D modeling processes by quickly creating ready-to-use 3D models at scan speeds of up to 16 frames per second.

Greater control

Seamlessly switch from turntable to manual scanning to easily capture every surface. Control the scan and easily adjust exposure with the three new RANGE 2 tactile buttons.

Better connection

RANGE 2 has completely updated its connectivity options with Wi-Fi 6 for faster and shorter mobile scanning and USB Type-C for connecting to a computer.

High-performance software

Revo Scan 5 is your portal to intuitive 3D scanning and powerful editing. It works on almost any device, with full support for iOS, Android, Windows and macOS. Export models in STL, PLY or OBJ formats for compatibility with most CAD, 3D modeling and slicing software.
