Toote toon ja tegelik värvus võivad erineda pildil kujutatust, kuna pildid on illustratiivse iseloomuga. Samuti on toote kirjeldus üldine ega pruugi sisaldada kõiki toote omadusi.
Switch SWITCH POE IP-9-11-L2 8-PORT ATTE
169,00 €
Kuumakse alates 5.25 €
3118746 IP-9-11-L2
5902143690337
2026-04-29
Maksa 5x33.80€Kauba vastu huvi?

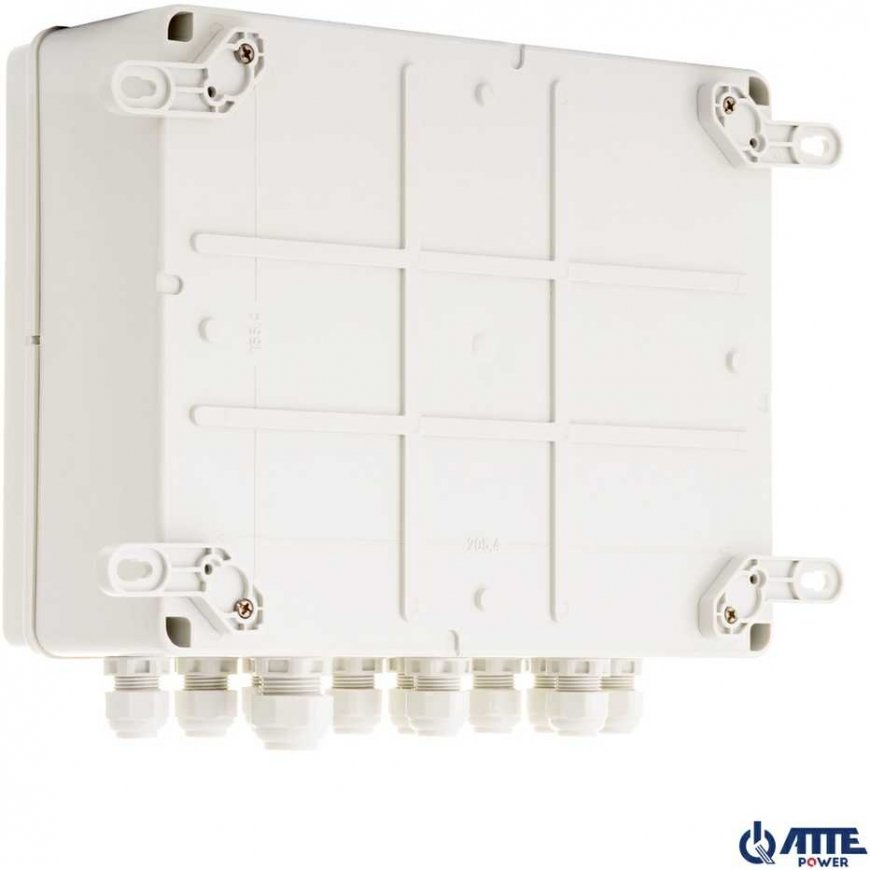

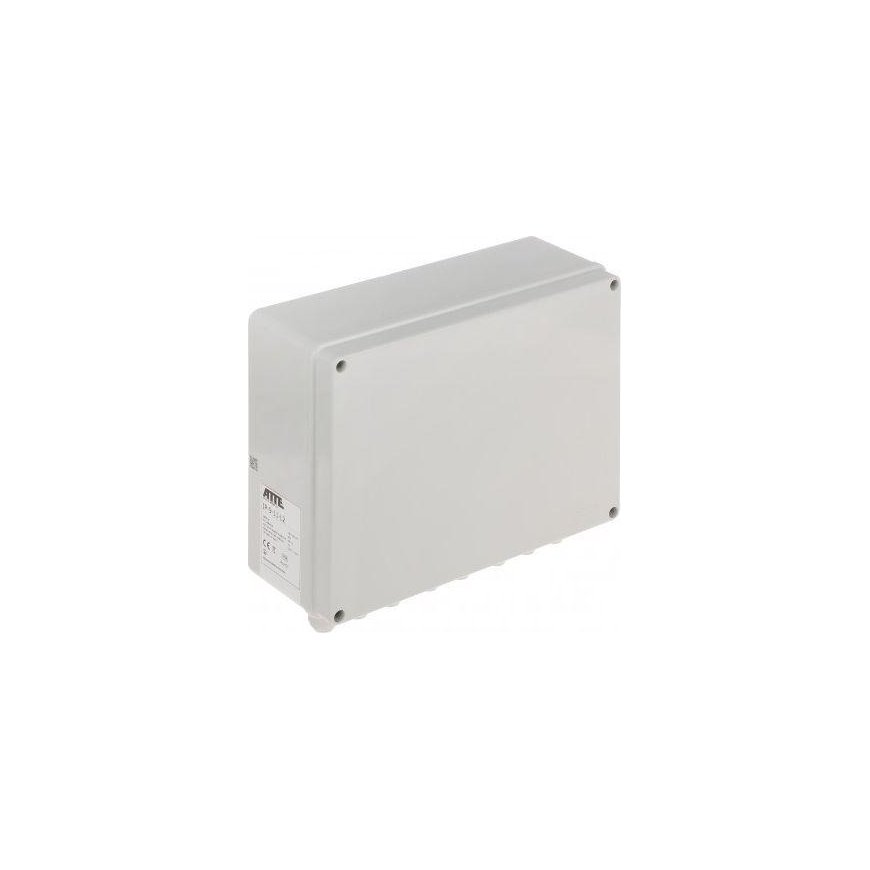

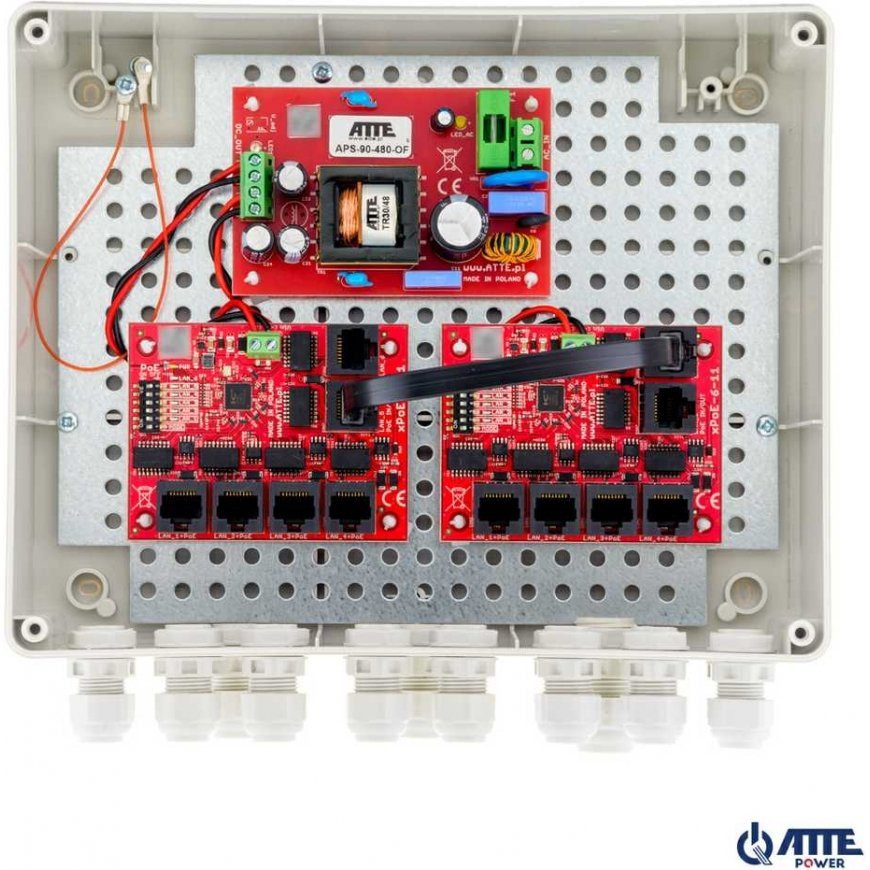

The IP-9-11-L2 kit consists of 2 XPOE-6-11-OF modules and a switching mode power supply APS-90-480-OF, installed in an external housing ABOX-L2 with IP56 sealing class.
The LONG RANGE operating mode allows you to increase the power and data transmission range of LAN 1 ... LAN 4 ports up to 280m while limiting the network bandwidth of these ports to 10Mbps.
Each XPOE-6-11-OF module can use LONG RANGE mode independently.
| LAN ports : | 1 x RJ45 10/100 Base-T - Uplink 9 x RJ45 10/100 Base-T + PoE (802.3af/at) / Passive PoE |
| Management via WWW/console : | - |
| LEDs : | Power, LAN |
| Transmission speed : | 10 / 100 Mbps : 1 LAN port + 9 LAN & PoE ports |
| Maximum output power : | 40 W @ Passive PoE - 1 ... 4 ports, 70 W @ Passive PoE - Port 5, 30 W @ PoE (802.3af/at) - 1 ... 5 ports |
| Maximum total power : | 96 W |
| Working mode : | Normal : 100 m @ 10/100 Mb/s - 1 ... 5 ports Long Range: 280 m @ 10 Mb/s - 1 ... 4 ports; 100 m @ 10/100 Mb/s - 5 port |

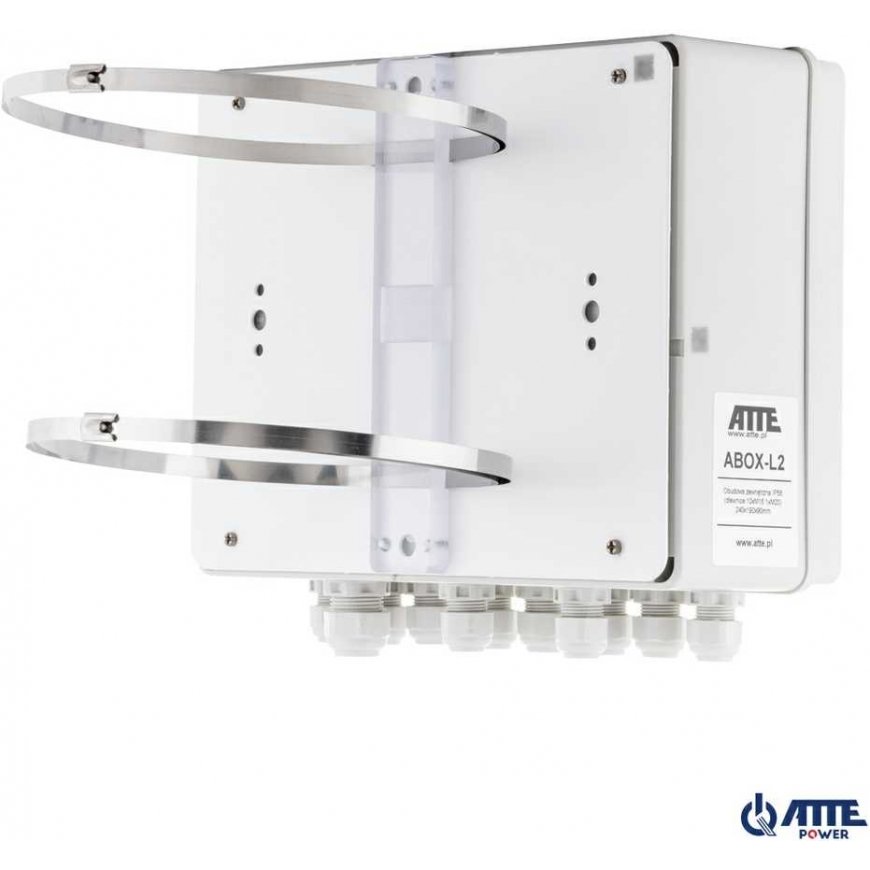

| Main features : | Device cascading possible (power transfer between devices using Passive PoE via LAN port 5) The LAN 5 (PoE IN/OUT) port can be used to power PoE devices as well as draw power from other devices. The output voltage of PoE is equal to the input voltage Independent power on and off PoE power capability for each port LAN 1 ... LAN 5 The modular design simplifies the maintenance task and helps to expand the system quickly and easily The raster assembly system of the modules facilitates the expansion of the device with other subsequent modules The mounting housing ABOX-L2 has 11 cable entries with glands in a system of 10 x M16 + 1 x M20 |
| Meals : | 230 V AC - cable terminals |
| Weight : | 1.05 kg |
| Dimensions : | 248 x 222 x 96 mm |
| Manufacturer / Brand : | ATTE |
| Warranty : | 3 years |
