SWITCH POE WITH BUFFER POWER SUPPLY IPUPS-8-20-H 8-PORT ATTE
299,00 €
Kuumakse alates 8.60 €
2332401 IPUPS-8-20-H
5902143690436
2026-04-29
Maksa 5x59.80€Kauba vastu huvi?
8-port switch port switch PoE in an internal case with a buffer power supply.
8 ports support Power over Ethernet (PoE) function.

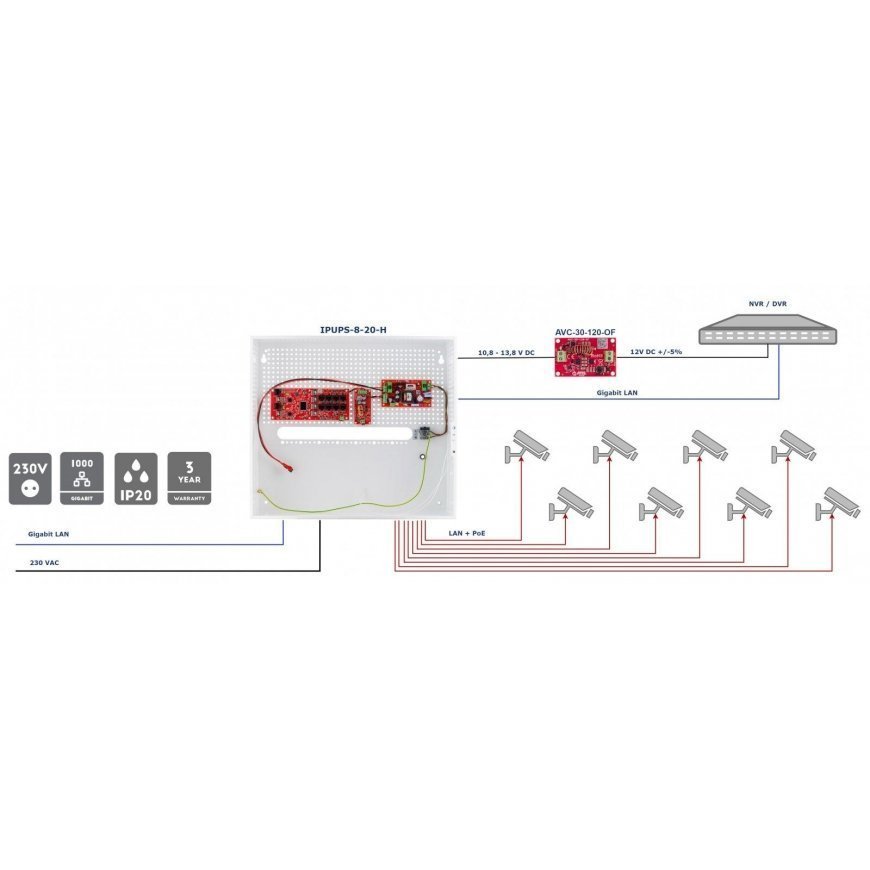

The IPUPS-8-20-H set consists of XPOE-10-20A-OF switch module, AUPS‑70‑120‑OF buffered power supply module and ASUC-100-480-OF voltage converter module enclosed in the ABOX-H internal enclosure with space for 2 18Ah batteries.
Buffer power supplies are adapted to work with maintenance-free batteries (gel or AGM) with a nominal voltage of 12V.
| LAN ports : | 2 x RJ45 10/100/1000 Base-T - Uplink, 8 x RJ45 10/100 Base-T + PoE (802.3af/at) / Passive PoE |
| Management via WWW/console : | - |
| LEDs : | AC , DC , CHARGING (battery charging), PoE, Gigabit Ethernet |
| Transmission speed : | 10 / 100 / 1000 Mbps : 2 x Uplink port, 10 / 100 Mbps : 8 x LAN & PoE port |
| Maximum output power : | 40 W @ Passive PoE - LAN1 ... LAN8 ports, 30 W @ PoE (802.3af/at) - LAN1 ... LAN8 ports |
| Maximum total power : | 60 W |
| Working mode : | Standard : 100 m @ 10/100 Mb/s - LAN1 ... LAN8 ports |
| Main features : | 4K UHD support Independent switching on and off PoE power supply for each port LAN 1 ... LAN 8 Modular design facilitates the maintenance task and helps to expand the system quickly and easily Raster module assembly system facilitates the expansion of the device with other following modules 2 x Space for battery : 12 V / 18 Ah Place for recorder (NVR) Battery charging current : 1 A / 2 A - (set by switch JP1) Battery - Protection against reverse polarity connection, Protection against deep battery discharge OC type technical outputs signaling loss of voltage at the output of the power supply (OUF) and loss of voltage in the 230V (ACF) network Power supply thermal protection : 130 °C Overload protection LAN & PoE ports - Overvoltage protection, TAMPER switch that signals the opening of the enclosure Sealing class : IP20 |
| Meals : | 190 ... 260 V AC |
| Weight : | 4.40 kg |
| Dimensions : | 455 x 405 x 150 mm |
| Manufacturer / Brand : | ATTE |
| Warranty : | 3 years |
