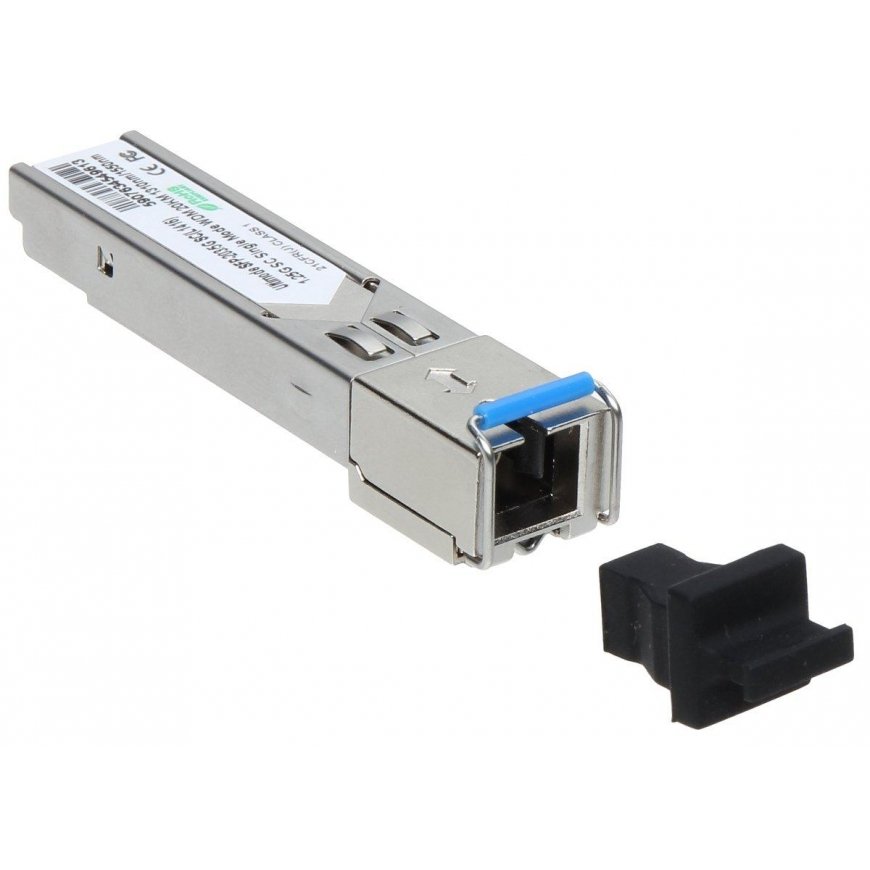

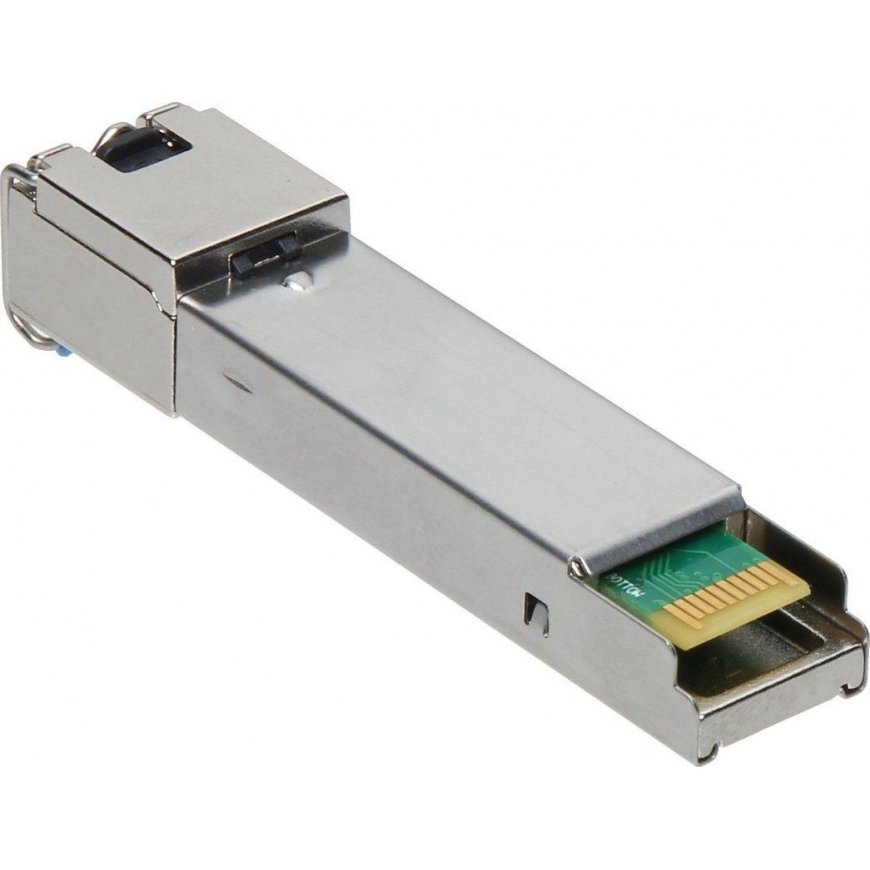

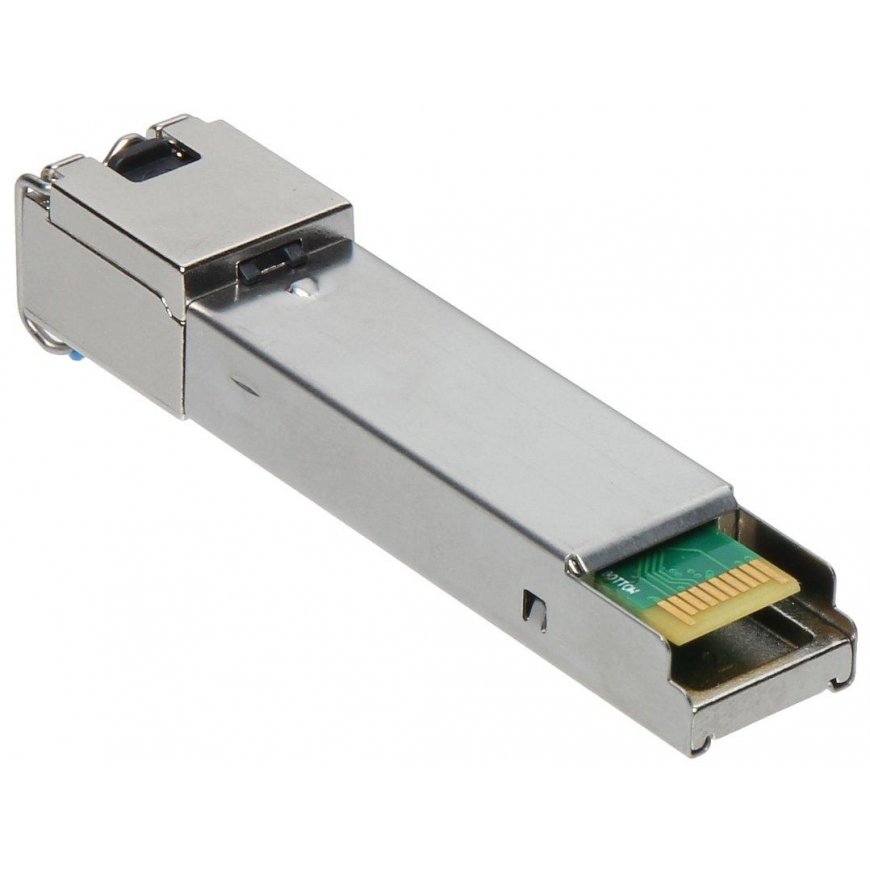

Splitter El Home SINGLE MODE MODULE SFP-203/5G/SC
2294806 SFP-203/5G/SC
5907634549613
Tarneaeg 2-5 t.p.
Optical modules complying with SFP (Small Form-factor Pluggable) standards are devices that convert electrical signals from electrical to optical and from optical to electrical.
Used converter media with module replacement SFP is very useful for versatility np. for example, during network configuration, instead of changing the entire installation or adding new media converters, you only need to apply a new SFP module.
The modules work with most switches and routers with an SFP slot.
Attention! SFP-203/5G/SC requires SFP-205/3G/SC for cooperation.
| Transmission protocols : | IEEE 802.3z 1000Base-FX |
| Fiber type : | 8.3/125 µm, 8.7/125 µm, 9/125 µm, 10/125 µm - Single-mode fiber |
| Maximum transmission distance : | 20 km |
| Transfer : | max. 1.25 Gb/s |
| Number of threads required : | 1 |
| Optical connectors : | SC |
| Light source/optical wavelength : | Laser FP - 1310 / 1550 nm (Tx / Rx) |
| Main features : | Spectral channel multiplexing technology WDM (Tx 1310nm / Rx 1550nm) |
| Transmitter power : | -8 ... -3 dB |
| Receiver sensitivity : | ≥ -22 dB |
| Meals : | 3.3 V DC |
| Working temperature : | 0 °C ... 70 °C |
| Weight : | 0.02 kg |
| Warranty : | 2 years |
