Switch SWITCH POE IP-5-11-L2 5 PORT ATTE
239,00 €
Kuumakse alates 7.05 €
2281194 IP-5-11-L2
5902143690252
Tarneaeg 2-5 t.p.
Maksa 5x47.80€Kauba vastu huvi?

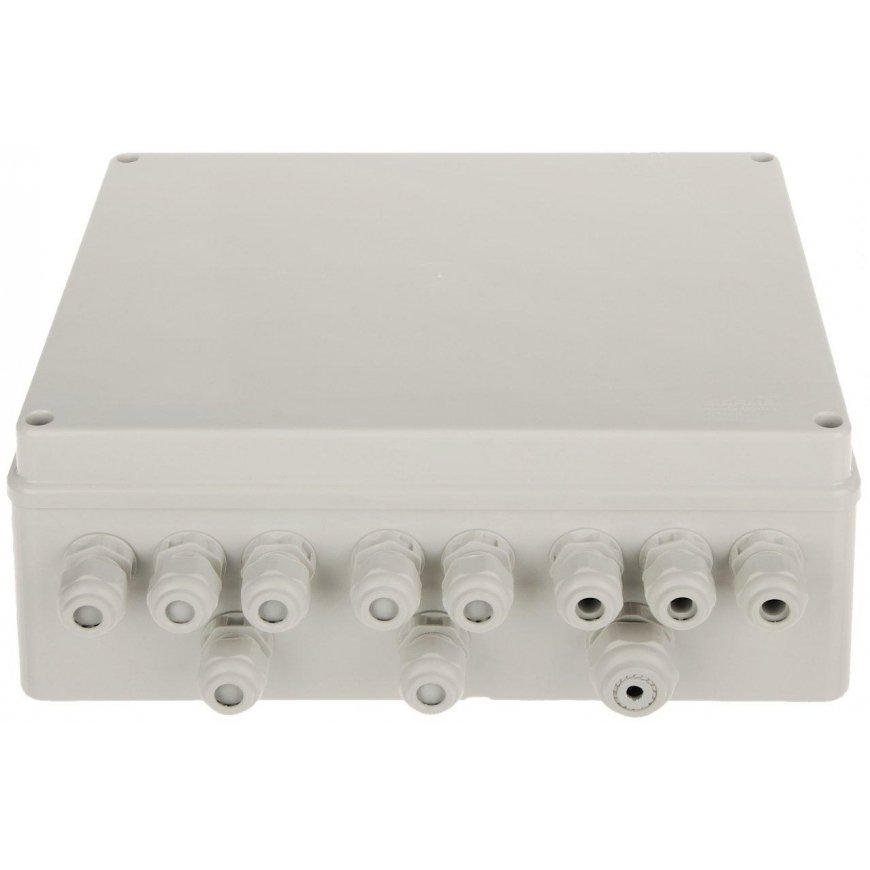

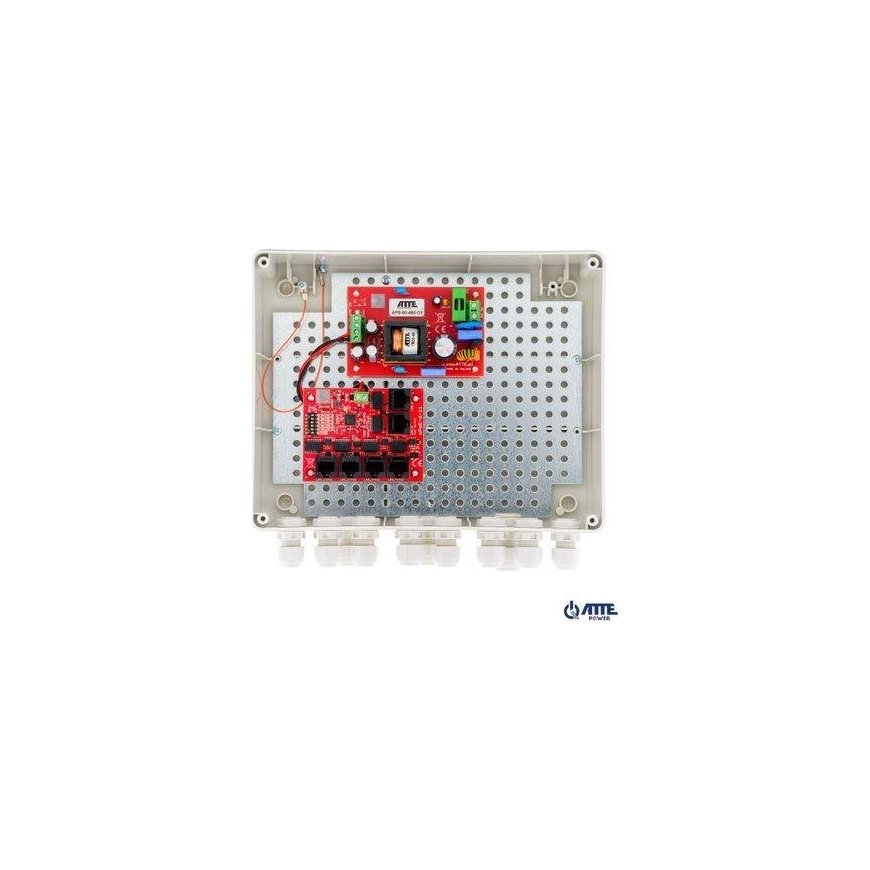

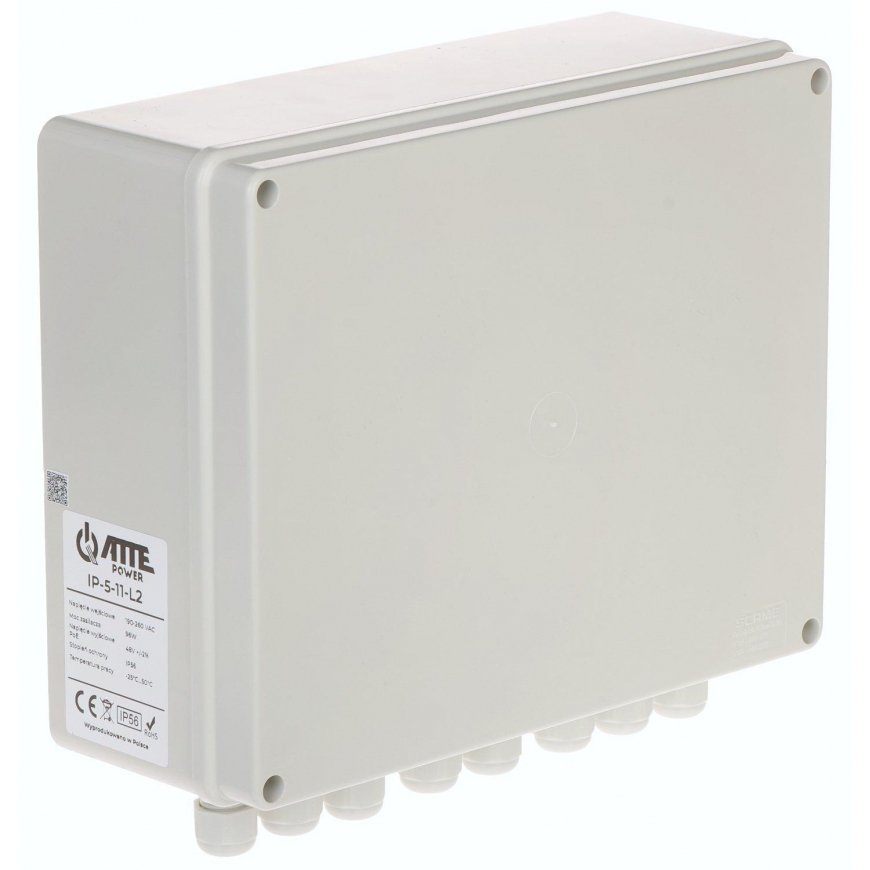

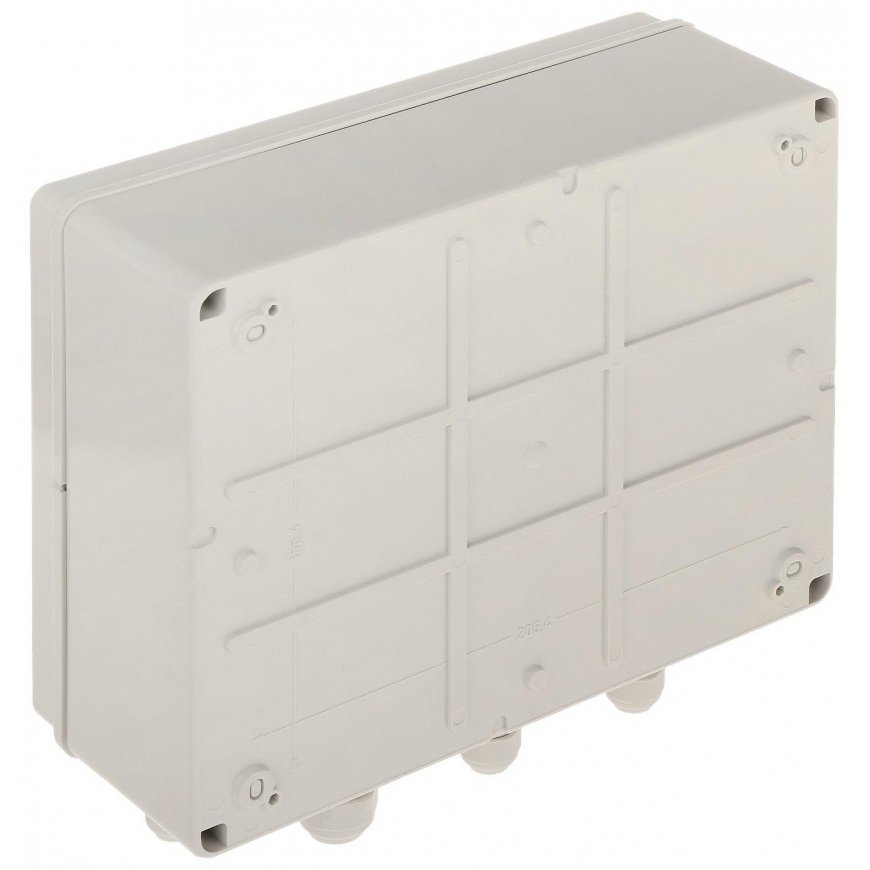

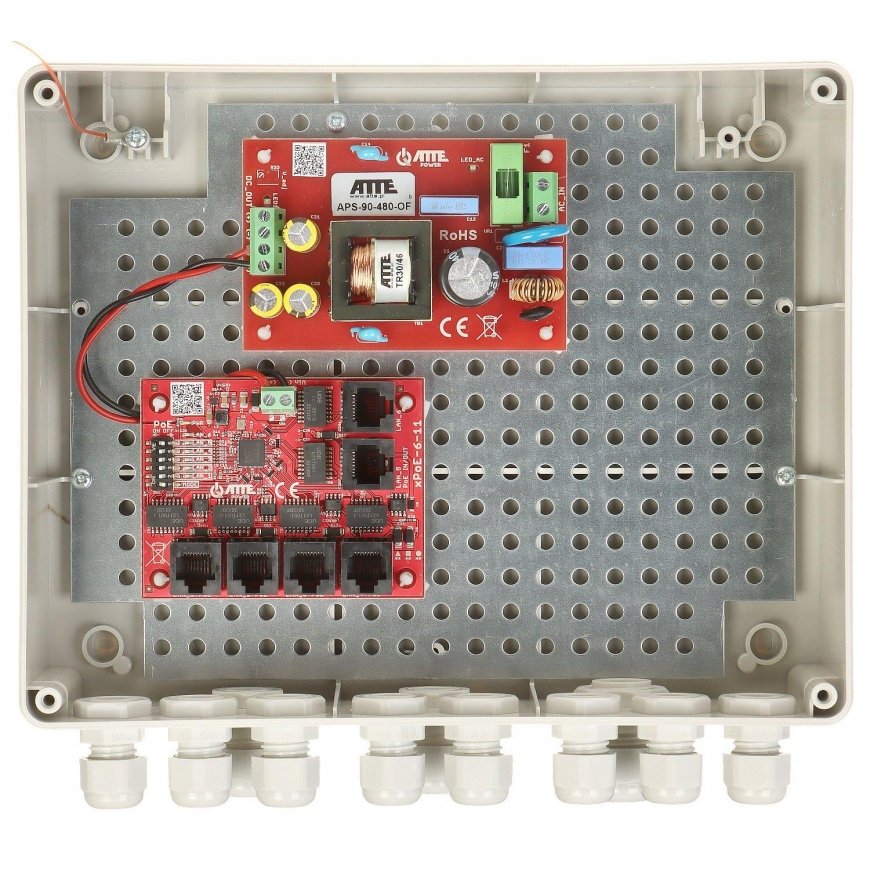

The set IP-5-11-L2 consists of the switch'0 module XPOE-6-11-OF and the pulse power supply APS-90-480-OF enclosed in an external housing ABOX-L2 where the sealing class is IP56.
The LONG RANGE operating mode allows you to increase the power and data transmission range of LAN 1 ... LAN 4 ports up to 280m while limiting the network bandwidth of these ports to 10Mbps.
| LAN ports : | 1 x RJ45 10/100 Base-T - Uplink, 5 x RJ45 10/100 Base-T + PoE (802.3af/at) / Passive PoE |
| Management via WWW/console : | - |
| LEDs : | Power, LAN |
| Transmission speed : | 10 / 100 Mbps : 1 LAN port + 5 LAN & PoE ports |
| Maximum output power : | 40 W @ Passive PoE - LAN1 ... LAN4 ports, 60 W @ Passive PoE - LAN5 port, 30 W @ PoE (802.3af/at) - LAN1 ... LAN5 ports |
| Maximum total power : | 60 W |
| Working mode : | Standard : 100 m @ 10/100 Mb/s - LAN1 ... LAN6 ports Long Range: 280 m @ 10 Mb/s - LAN1 ... LAN4 ports; 100 m @ 10/100 Mb/s - LAN5, LAN6 ports |
| Main features : | Device cascading possible (power transfer between devices using Passive PoE via LAN 5 port) PoE output voltage is equal to input voltage Independent on and off PoE power supply option for each port LAN 1 ... LAN 5 Modular design facilitates the maintenance task and helps fast and easily expand the system The raster module assembly system makes it easy to expand the device with other following modules The mounting housing ABOX-L2 has 11 cable entries with glands 10 x M16 + 1 x M20 in the system Sealing class : IP56 |
| Meals : | 190 ... 260 V AC - cable terminals |
| Weight : | 1.02 kg |
| Dimensions : | 248 x 198 x 96 mm |
| Manufacturer / Brand : | ATTE |
| Warranty : | 3 years |
