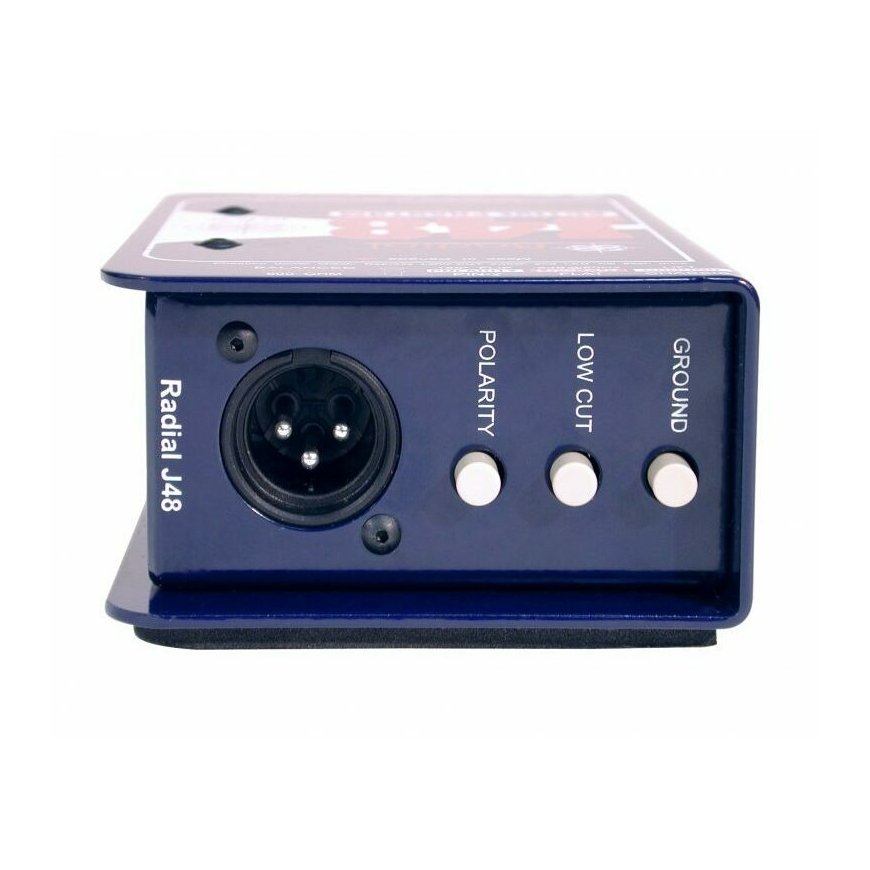

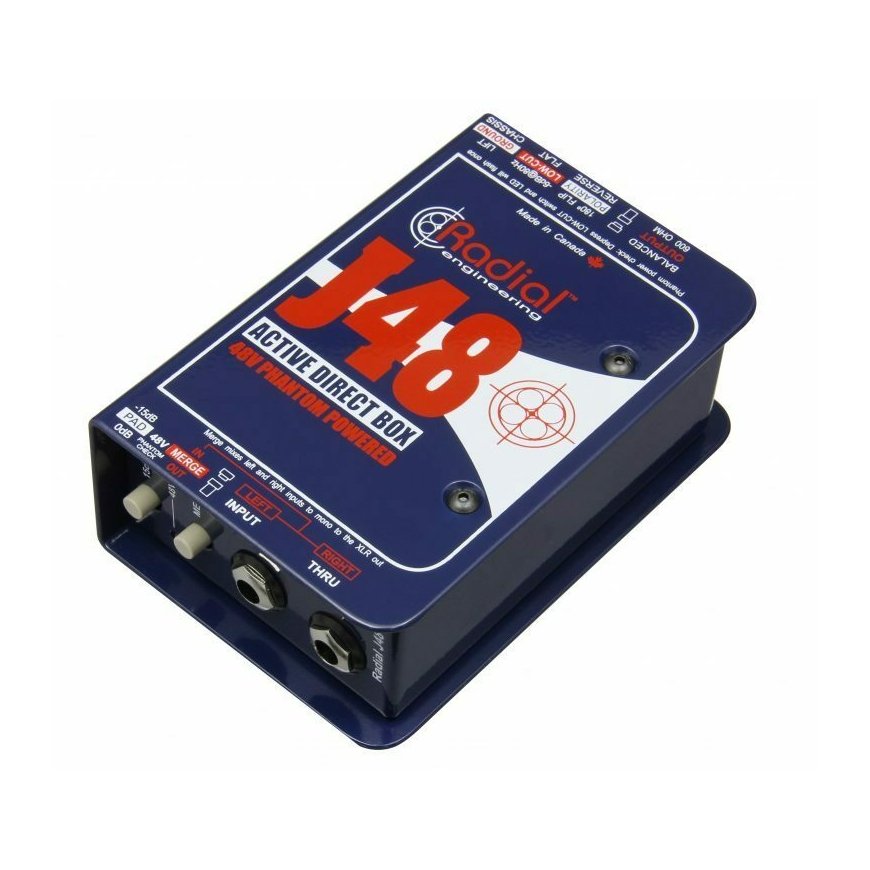

Radial Engineering J48 DI box

The J48 is an active DI box optimized to withstand extreme electrical current pulses without distortion. Preserves the natural sound of the instrument. Works with 48V Phantom power.

Features:

• Durable metal frame
• 15dB pad
• Frequency response: 20 to 20,000 Hz
• Dynamic range: 109dB
• THD: 0.002% @ -5dBu
• Input impedance: 220 kOhm (6.3 mm)
• Output impedance: 200 Ohm (XLR, balanced)
• Mono Sum, 180º Polarity reverse, HPF
• Ground Lift Switch
• Connections: 1/4" input connection, Balanced XLR output
• 48V Phantom
• Weight: 720 grams
