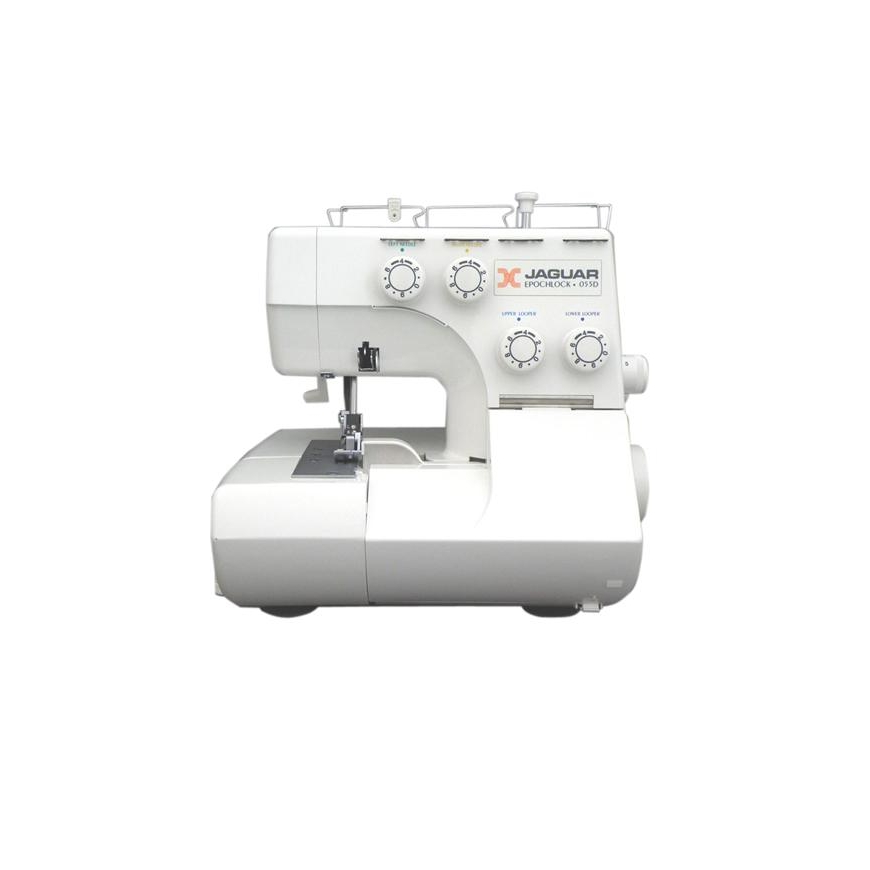

Sewing machine Edge overlock machine Jaguar 055D

Jaguar 055D

4-thread, 3-thread semi-industrial overlock
This overlocker model is appreciated not only because it performs all the basic operations and has all the basic adjustments, but especially because of its quiet operation, the most convenient threading mechanism design and affordable price. It is one of the best-selling models in the world. From now on, you will be able to adjust not only the length of the stitch, but also the width of the seam thanks to the special tongue of the needle plate and the trimming width regulator. The machine is equipped with a differential material feed, so you can cast such problematic materials as silk and knitwear. Easily adjustable thread tension. The top knife is very easy to detach. To make a round chiffon cast-on (babylock stitch), it is enough to make only one movement and the round cast-on is done.

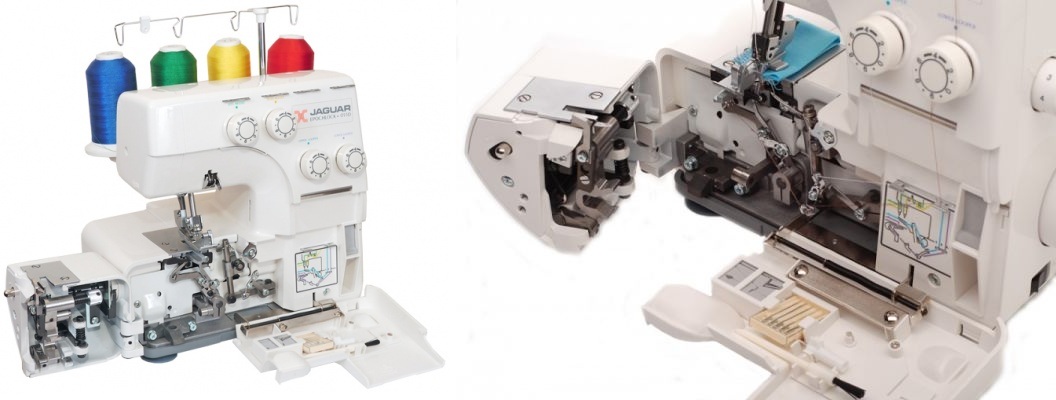

Openable lid (patented by JAGUAR) for convenient threading, oiling and blade replacement.

Stitches are performed:

Distinctive features:
Opening cap (patented by JAGUAR) for convenient threading
Improved threading system (color coding)
Fabrics range from chiffon to drape
Differential material feed adjustment
Edge trimming width adjustment
Adjusting the seam width
Pedal pressure adjustment
Adjusting the seam width
Disengagement of the upper blade
Handy garbage collector

Technical characteristics:
Differential feed coefficient: 0.5-2.25
The maximum seam width is 7.5 mm
Stitch length: 1 - 5 mm
weight 10.7 kg
Voltage 220...240 V
Power 110 W
Lighting 220 V/max.15W
Sewing speed 1300 rpm
Pedal lift height 11.2 mm
Max. material thickness 8.0 mm
Needle system 130/705 Н

Standard accessories:
"Tongue" for forming a loop
A set of needles
A brush
Screwdriver (small)
Garbage collector
Soft case
Lubricant
Handbag for accessories
Holders for large thread spools
Covers for large thread spools
Thread nets
Small spool caps
Tweezers
User's Guide
Foot pedal
Connection cable

Manufacturer:   Jaguar International Corporation, Japan
Warranty:   24 months
Instruction:   in Lithuanian, Russian, German and English
