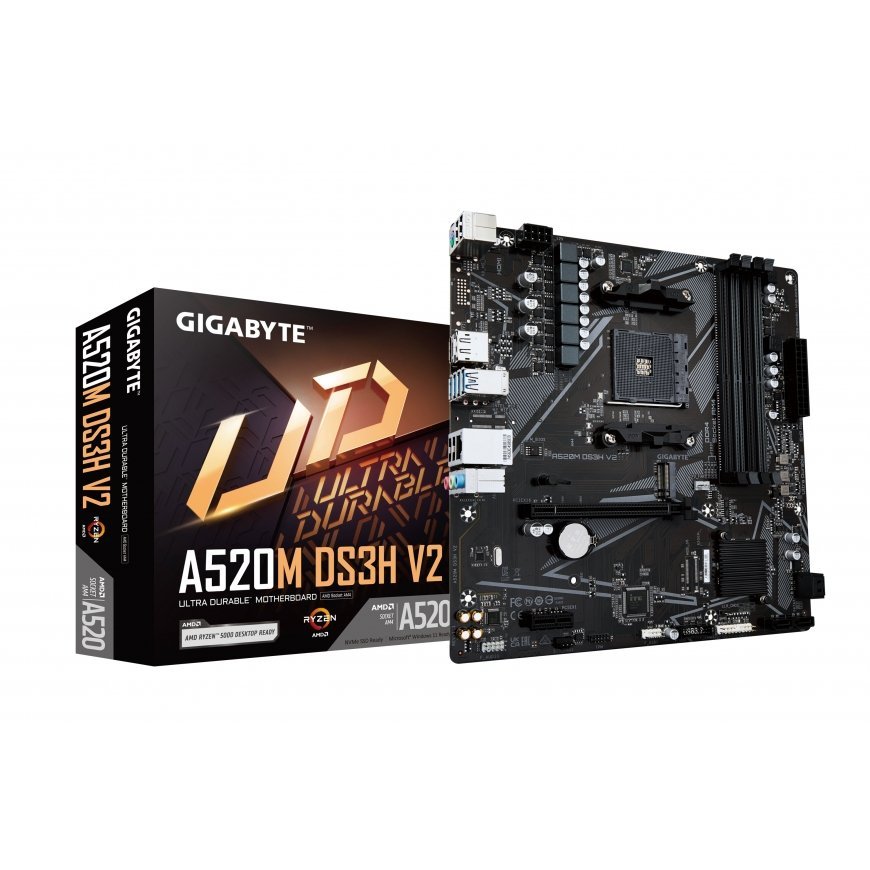

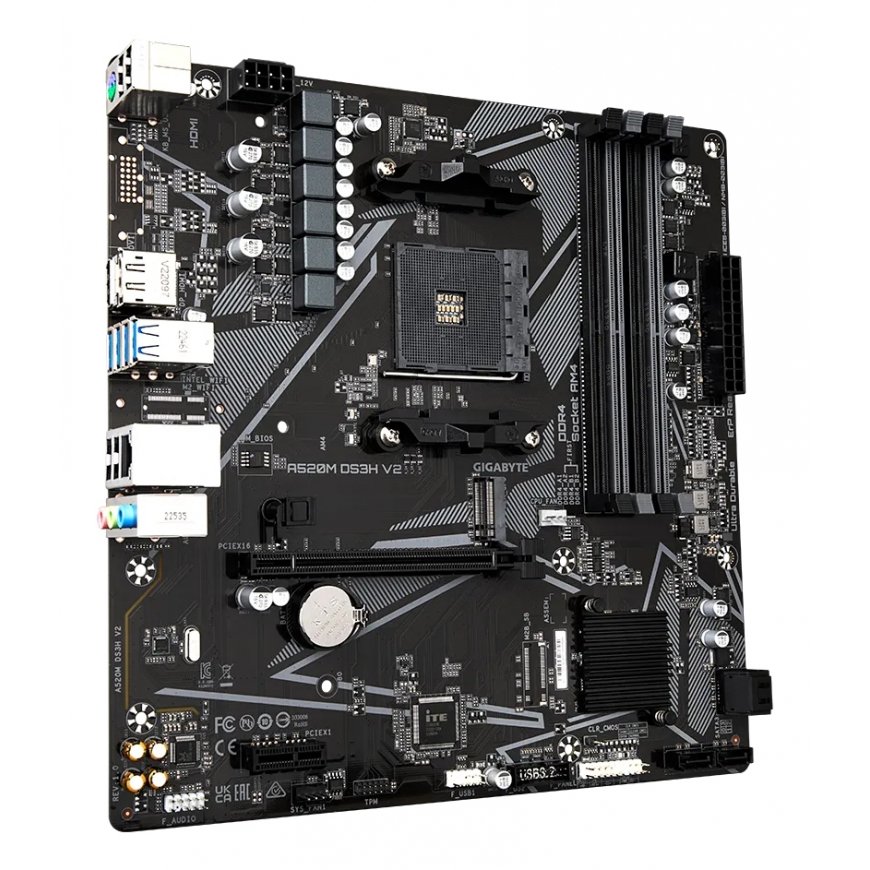

GIGABYTE A520M DS3H V2 motherboard
74,66 €
Monthly payment from 2.82 €
2305592 A520M DS3H V2
4719331854690
This product is no longer in stock
Pay 5x14.93€You are interested in this product?
Processor | |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series |
| Maximum number of SMP processors | 1 |
| Processor socket | Socket AM4 |
| Supported processor sockets | Socket AM4 |
| Maximum internal memory supported by processor | 128 GB |
| Processor manufacturer | AMD |
Memory | |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | 2133, 2400, 2667, 2933, 3200, 3600, 4000, 4400, 4733, 3333 |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Supported memory module capacities | 2GB, 4GB, 8GB, 16GB, 32GB, 1GB |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
Storage controllers | |
| RAID levels | 0, 1, 10 |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| RAID support | Yes |
Graphics | |
| HDCP | Yes |
| Maximum resolution | 5120 x 2880 pixels |
| Discrete graphics support | Yes |
| Number of displays supported | 3 |
Internal I/O | |
| USB 2.0 connectors | 1 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| Power fan connector | Yes |
| TPM connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA II connectors | 0 |
| Number of SATA III connectors | 4 |
| Serial port headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Total number of SATA connectors | 4 |
| Front panel connector | Yes |
| 12V power connector | Yes |
Rear panel I/O ports | |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| eSATA ports quantity | 0 |
| DVI-D ports quantity | 1 |
| Digital audio optical out | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.1 |
| DisplayPort version | 2.0 |
| USB connector type | USB Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Features | |
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | AMD |
| Cooling type | Active |
| PC health monitoring | CPU, Temperature, LED, Voltage, Power supply |
| Component for | PC |
| Windows operating systems supported | Windows 10 x64 |
| Power source type | ATX |
| Audio chip | Realtek ALC887 |
| Product colour | Black |
Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 35 mm |
Technical details | |
| Warranty period | 3 year(s) |
Packaging content | |
| Cables included | SATA |
| Bundled software | Realtek 8118 Gaming LAN Bandwidth Control Utility, Norton Internet Security (OEM version) |
| Drivers included | Yes |
| Batteries included | Yes |
Packaging data | |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 810 g |
Logistics data | |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
